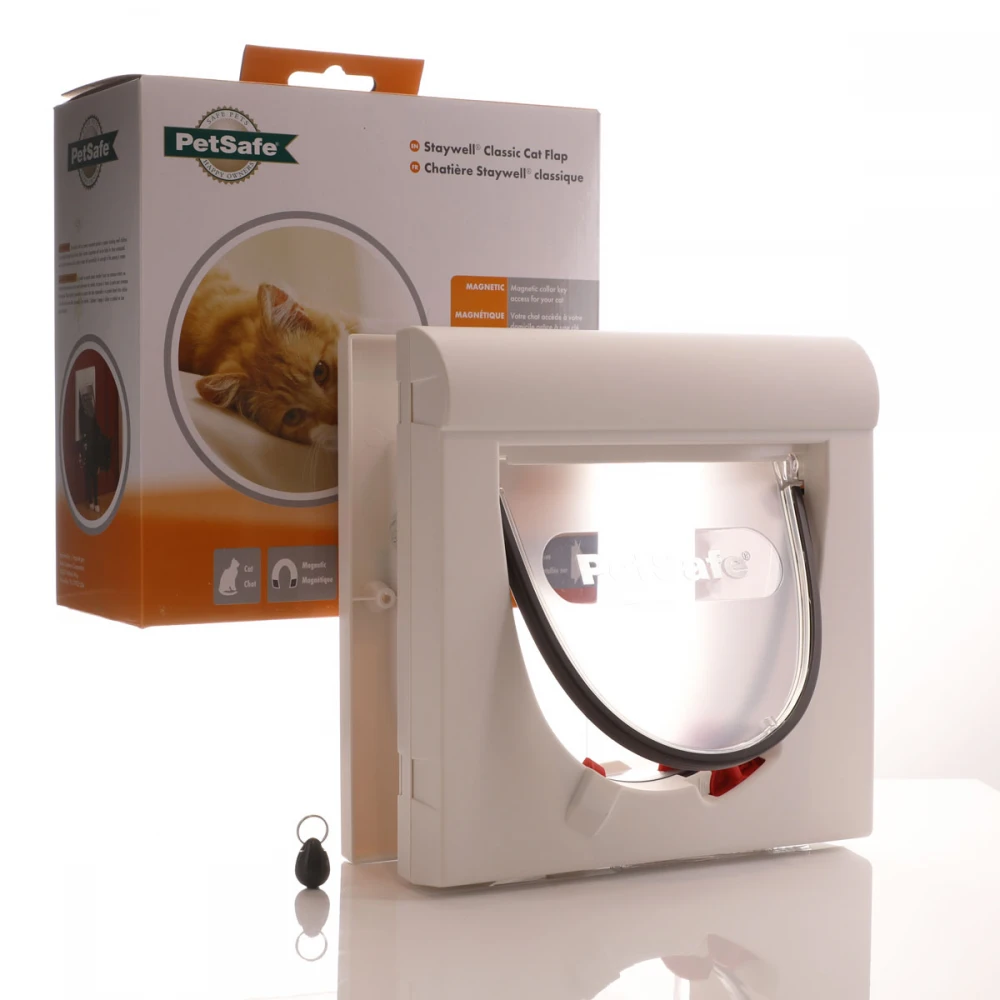

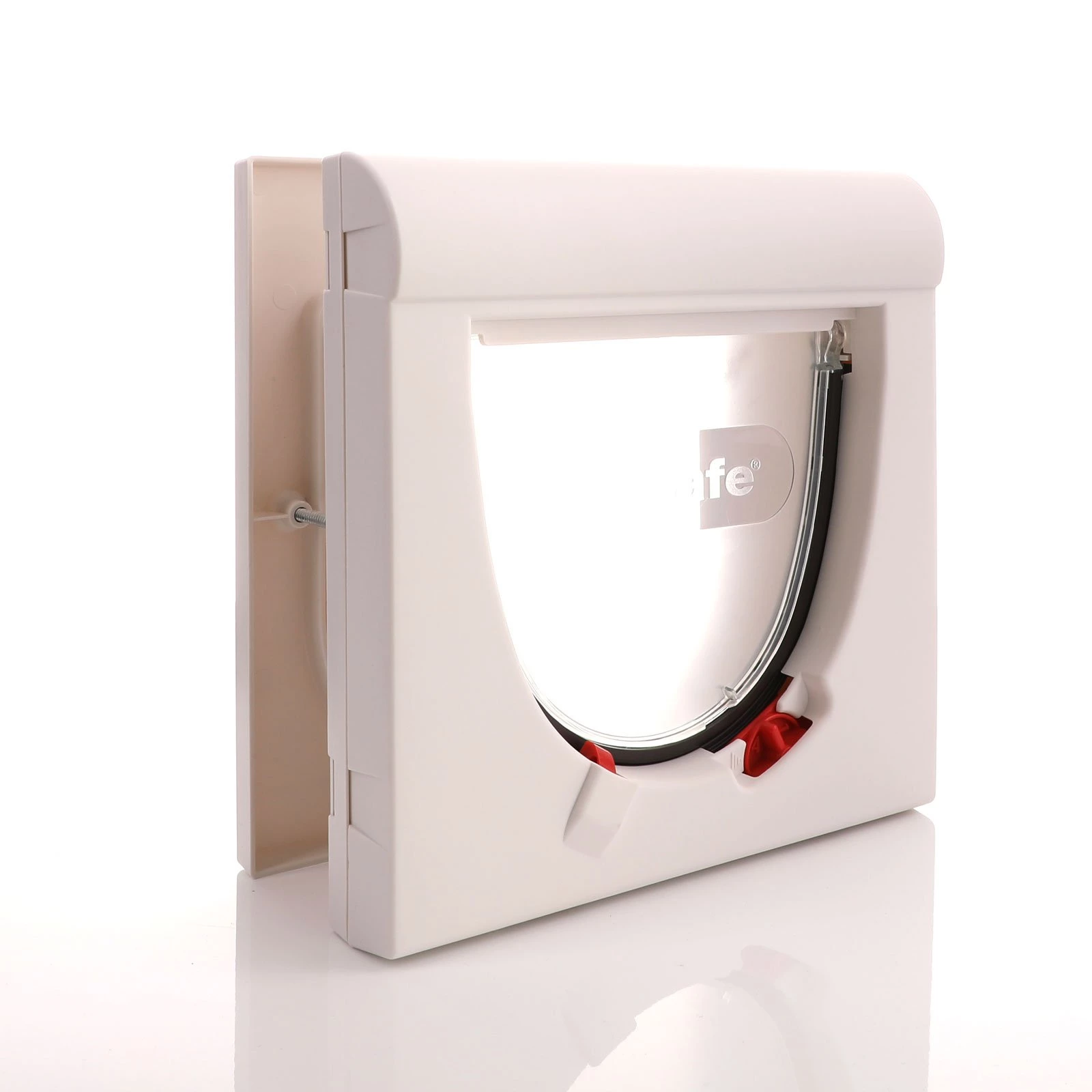

PetSafe Staywell 932 Magnetic Cat Flap – 4-Way Locking Cat Door

The PetSafe Staywell 932 Magnetic Cat Flap is a proven selective-entry cat flap that uses a simple magnetic collar key to help prevent unwanted cats from entering your home. With no batteries, electronics or programming required, it remains an excellent choice for owners looking for a straightforward and dependable magnetic cat flap.

Part of the long-established PetSafe Staywell 900 Series, the 932 combines magnetic entry control with a 4-way manual locking system, transparent weather-resistant flap and integral tunnel. It can be installed into suitable timber doors, uPVC door panels, walls and professionally prepared glass.

How Does the Staywell 932 Magnetic Cat Flap Work?

Your cat wears the supplied magnetic key on its collar. When your cat approaches the door from outside, the magnet operates the locking mechanism inside the tunnel and releases the flap.

Your cat can then push through the door normally. Cats without the correct magnetic collar key cannot operate the selective-entry mechanism.

This gives you an additional level of control over which cats can enter your home without the batteries required by microchip and electronic cat flaps.

No Batteries or Programming Required

One of the biggest advantages of the Staywell 932 is its simplicity. There are no batteries to replace, microchips to programme or electronic controls to configure.

Fit the magnetic key to your cat's collar and the mechanical magnetic locking system does the rest.

For customers who simply want to discourage neighbouring cats from entering their home, a magnetic cat flap can remain a practical and economical alternative to a microchip model.

4-Way Locking Cat Flap

The built-in 4-way manual lock allows you to control how your cat uses the flap.

• In & Out: Your cat can enter and leave freely.
• Fully Locked: Prevents normal entry and exit.
• In Only: Your cat can return home but cannot normally leave again.
• Out Only: Allows outward movement while restricting normal re-entry.

The In Only setting can be particularly useful when you want your cat to come home and then remain indoors, for example before a veterinary appointment or when bringing cats inside for the evening.

Suitable for uPVC Door Panels

The PetSafe Staywell 932 can be fitted into suitable uPVC door panels. Correct installation is important because the integral tunnel contains part of the magnetic locking mechanism.

Do not cut or shorten the integral tunnel. Unlike a simple manual cat flap, the tunnel forms part of the operation of the magnetic entry system.

Suitable for Timber Doors

The 932 can also be installed into suitable wooden and timber doors. The required square cut-out is approximately 169 x 169mm.

Always use the manufacturer's installation template and instructions when preparing a new opening rather than relying solely on the dimensions shown on a product page.

Can the Staywell 932 Be Fitted into Glass?

Yes. The Staywell 932 is suitable for appropriate glass installations using a circular opening of approximately 210mm diameter.

Do not attempt to cut an existing toughened or double-glazed unit. Where the cat flap is being fitted into a double-glazed door or window, a correctly manufactured replacement sealed unit with the required hole should normally be ordered.

If you're unsure about fitting a cat flap into glass or a uPVC door, contact CatFlaps.co.uk and we'll be happy to help with technical advice.

Wall Installation

The Staywell 932 can also be used for suitable wall installations. Wall construction varies considerably, so the opening and tunnel should be properly prepared and finished to prevent moisture entering the wall.

If you're unsure about a wall installation, speak to us before cutting the opening.

Important – The 60mm Tunnel Cannot Be Shortened

The Staywell 932 incorporates an approximately 60mm deep tunnel containing the magnetic locking mechanism.

This tunnel must not be cut or shortened.

This is particularly important when planning installations into thinner door panels or glass. Check that the tunnel arrangement is suitable for your intended installation before cutting or ordering replacement glass.

Weather-Resistant Transparent Flap

The transparent flap allows your cat to see through the opening before passing through. This can make a cat flap easier for some cats to learn to use, particularly if they are unfamiliar with pet doors.

The flap incorporates magnetic closing and weather-resistant features designed to help it return to the closed position after your cat passes through.

Staywell 932 – Previously Known as the Staywell 32

The Staywell 932 is the later model number associated with the long-established Staywell Model 32.

This is particularly useful to know when searching for replacement parts or replacing an older installation, as many existing cat flaps may still be identified by the earlier Staywell numbering.

Key Features

• Genuine PetSafe Staywell 932 Magnetic Cat Flap
• Part of the PetSafe Staywell 900 Series
• Previously known as the Staywell Model 32
• Selective magnetic entry system
• Magnetic collar key supplied
• No batteries required
• No electronic programming required
• 4-way manual locking system
• Transparent cat flap
• Magnetic closing action
• Suitable for compatible uPVC door panels
• Suitable for timber doors
• Suitable for professionally prepared glass
• Suitable for appropriate wall installations
• White easy-clean frame

Product Dimensions

• Overall Frame Size: Approximately 224 x 224mm
• Wood / Panel Cut-Out: Approximately 169 x 169mm
• Glass Cut-Out: Approximately 210mm diameter
• Maximum Pet Shoulder Width: Approximately 162mm
• Maximum Installation Thickness: Approximately 50mm
• Integral Tunnel: Approximately 60mm
• Tunnel: Must not be shortened
• Colour: White
• Operation: Magnetic Collar Key
• Lock: 4-Way

Important: Use the installation template supplied with the product when making a new opening. Published dimensions are useful for checking suitability but should not replace the manufacturer's fitting template.

What's Included?

• 1 × PetSafe Staywell 932 Magnetic Cat Flap
• 1 × Magnetic Collar Key
• Fixings
• Installation Instructions

Magnetic Cat Flap or Microchip Cat Flap?

The main advantage of the Staywell 932 is its simple mechanical operation. There are no batteries and the cat does not need to have a microchip for the selective-entry feature to work.

A microchip cat flap can provide more individual control because it identifies your cat's implanted microchip. The Staywell 932 instead relies on the magnetic collar key worn by the cat.

If you're unsure whether a manual, magnetic or microchip cat flap is best for your home, contact CatFlaps.co.uk. We supply all three types and can help you choose based on what you're actually trying to achieve rather than simply recommending the most expensive option.

Frequently Asked Questions

Does the PetSafe Staywell 932 need batteries?

No. The Staywell 932 uses a mechanical magnetic locking system and does not require batteries or mains electricity.

Does my cat need to be microchipped?

No. The selective-entry mechanism is operated by the magnetic collar key supplied with the cat flap rather than your cat's implanted microchip.

Will the Staywell 932 stop other cats coming inside?

The magnetic entry system is designed to restrict normal entry to a cat wearing the appropriate magnetic collar key. It therefore provides more entry control than an unrestricted manual flap, although a magnetic system should not be regarded as an absolute security device.

Can I fit the Staywell 932 into a uPVC door?

It can be fitted into a suitable uPVC door panel. The construction of uPVC doors varies, so check the panel and installation requirements before cutting.

Can the Staywell 932 be fitted into double glazing?

Yes, using a professionally manufactured replacement double-glazed unit containing the correct circular opening. Existing toughened or sealed double-glazed units should not simply be cut on site.

What size hole is required for glass?

The specified glass cut-out is approximately 210mm diameter. Always confirm this against the current manufacturer's fitting template before ordering a replacement glass unit.

Can I cut the tunnel shorter?

No. The approximately 60mm tunnel contains part of the magnetic locking mechanism and must not be shortened.

Does the Staywell 932 have a 4-way lock?

Yes. The manual control provides In & Out, Fully Locked, In Only and Out Only settings.

Is the Staywell 932 the same as the old Staywell 32?

The Staywell 932 is associated with the earlier and very popular Staywell Model 32 designation.

Can I buy replacement parts?

Replacement parts are available for many Staywell 900 Series products. If you're trying to repair an older cat flap and aren't sure which part you need, send CatFlaps.co.uk a photograph and any model number you can find and we'll be happy to help identify it.

Need Help Choosing or Fitting Your Cat Flap?

Choosing a cat flap isn't always as straightforward as comparing the price and the size of the hole. Door construction, panel thickness, glass specifications, wall construction and the type of access control you require can all affect which model is most suitable.

CatFlaps.co.uk specialises in cat flaps, pet doors and replacement parts. If you're unsure whether the PetSafe Staywell 932 is right for your installation, contact us before ordering and we'll be happy to help.

Download the Product Manual

Download the PetSafe Staywell 932 Installation Manual (PDF)

Watch the Product Video

Watch the video below for more information about the PetSafe Staywell 932 Magnetic Cat Flap.
