PetPorte Smart Flap Microchip Cat Flap – White | Programmable PetSafe Cat Door

The PetPorte Smart Flap Microchip Cat Flap is an advanced electronic cat door that recognises your cat’s implanted microchip and allows authorised entry without the need for a collar or tag.

Unlike many standard microchip cat flaps, the PetPorte Smart Flap can be programmed with timed access controls, allowing you to manage when your cat can leave or return home. Its external scanner reads your cat’s microchip before they reach the flap, helping provide fast and reliable entry while keeping unwanted cats outside.

Microchip-Controlled Selective Entry

The PetPorte Smart Flap reads your cat’s compatible implanted microchip and unlocks the door only for registered pets. This helps prevent neighbouring cats and other unwanted animals from entering your home.

No collar is required, making it a convenient and comfortable option for cats that already have a compatible microchip.

Programmable Timer and Night Mode

The built-in timer function allows you to control when your cat can go outside and when they are allowed to return. This is particularly useful for keeping cats indoors overnight or creating a regular daily routine.

• Set automatic locking and unlocking times
• Restrict outdoor access during selected hours
• Allow authorised cats to return home safely
• Manage access without manually changing the lock

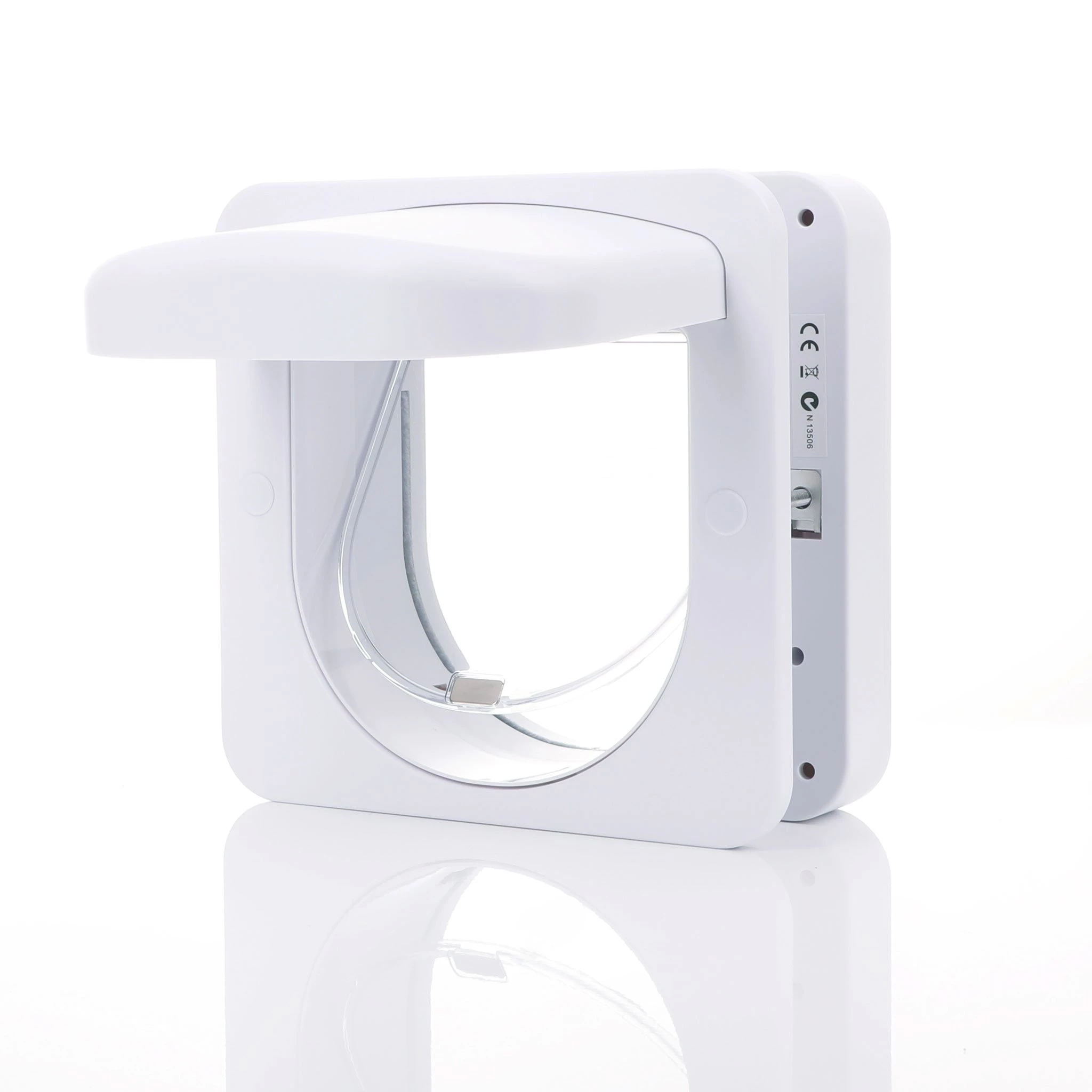

External Microchip Scanner

The PetPorte uses an external scanning porch that detects your cat’s microchip before they reach the flap. This helps the door unlock quickly, even for cats that approach at speed.

The adjustable re-latch time allows enough time for your cat to pass fully through the opening before the flap locks again.

Mains Powered with Optional Battery Backup

The PetPorte Smart Flap operates from a low-voltage mains power supply, allowing the scanner to monitor continuously for authorised microchips.

Optional battery backup can help maintain operation during temporary power interruptions. Extension cables are also available if the nearest power socket is further away from the installation.

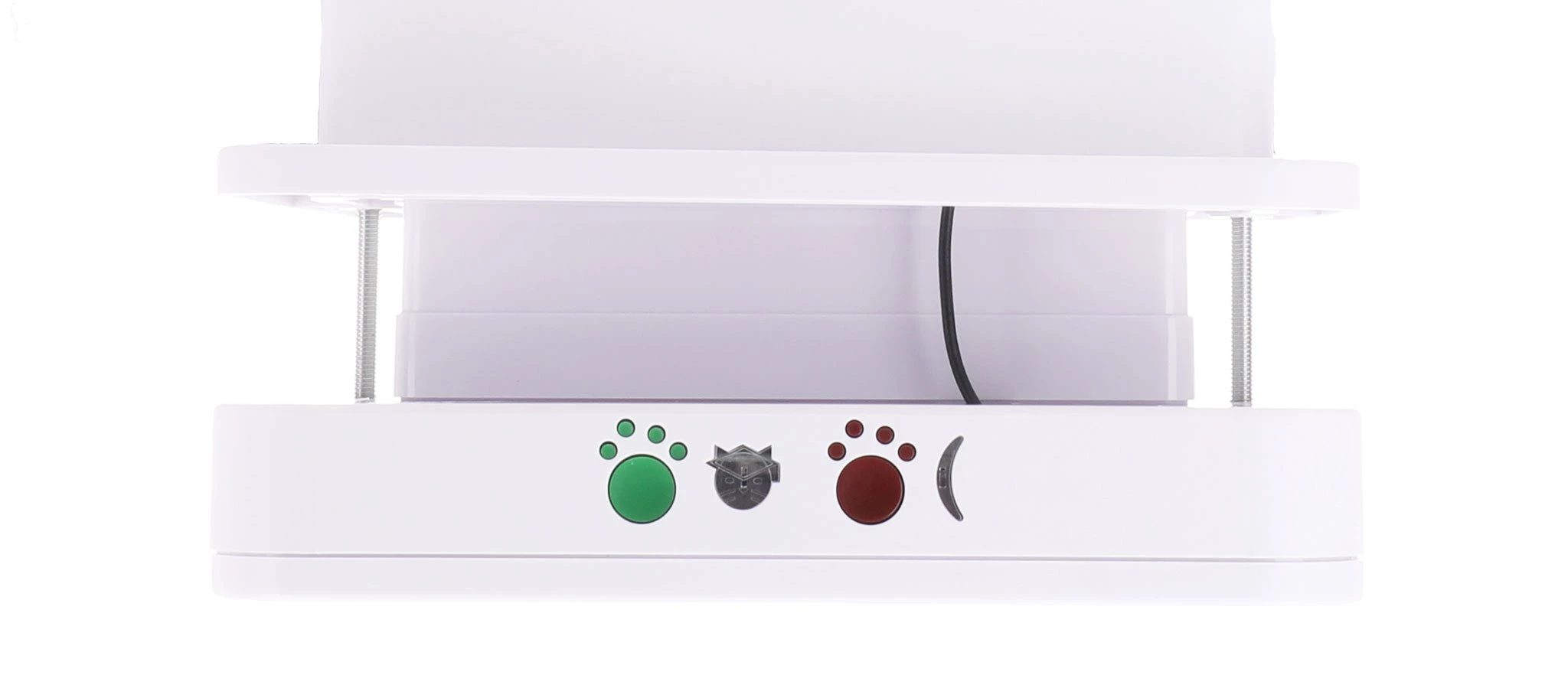

Easy-to-Use Control Panel

The simple control buttons allow you to register cats, change access settings and operate the timer functions. LED indicators provide clear information about the current operating mode.

An optional audible alert can notify you when your cat returns home.

Key Features

• Microchip-controlled selective entry
• No collar or key required
• Helps keep neighbouring cats outside
• Programmable timer and night mode
• External scanner detects cats before they reach the flap
• Adjustable re-locking time
• Audible return alert
• LED operating indicators
• Stores up to 25 microchipped cats
• Low-voltage mains operation
• Optional battery backup
• Suitable for door and wall installations

Product Dimensions

• Frame Dimensions: 232mm × 232mm × 158.6mm
• Flap Opening: 160mm × 160mm
• Door Cut-Out: 180mm × 171mm
• Glass Cut-Out: 212mm diameter
• Maximum Pet Shoulder Width: 150mm

Technical Specifications

• Compatible Microchip Frequency: 134.2kHz FDX-B
• Microchip Standard: ISO 11784 / 11785
• Maximum Registered Cats: 25
• Power Supply: 12V DC
• Power Consumption: Approximately 1.2 watts
• Exterior Frame: Approximately 232mm × 232mm × 49mm
• Flap Opening: 160mm × 160mm
• Scanner Porch: Approximately 195mm × 37mm × 142mm

Installation Options

The PetPorte Smart Flap is suitable for installation into:

• Timber doors
• uPVC door panels
• Suitable composite door panels
• Wall installations using PetPorte tunnel extensions
• Professionally prepared glass panels

For double-glazed or toughened glass installations, a new glass unit with the correct factory-cut opening will normally be required.

Compatible Accessories

• PetPorte Extension Cable – extends the distance between the cat flap and the power socket.
• PetPorte Tunnel Extensions – required for deeper wall installations.
• PetPorte Replacement Flap – replacement transparent flap for existing units.

Important Microchip Compatibility

The PetPorte Smart Flap is designed for compatible 134.2kHz FDX-B microchips. Some older or unusual microchip formats may not work correctly.

• Microchips containing letters are not compatible.
• Some 10-digit microchips may not be compatible.
• Microchips beginning with 977 may not be recognised.
• Some microchips beginning with 98514 may work with a reduced reading distance.

We recommend checking your cat’s microchip number before ordering if you are unsure about compatibility.

Frequently Asked Questions

Does the PetPorte require a collar?

No. The flap reads your cat’s compatible implanted microchip, so no collar or tag is required.

How many cats can be registered?

The PetPorte Smart Flap can store up to 25 compatible microchipped cats.

Does it run on batteries?

The main unit is powered by a low-voltage mains supply. Optional battery backup may be used for temporary power interruptions.

Can I set a night-time curfew?

Yes. The timer and night mode functions can automatically manage when your cat is allowed to go outside or return home.

Can it be fitted through a wall?

Yes. PetPorte tunnel extensions are available separately for wall installations.

Can it be installed into glass?

Yes. A professionally prepared glass panel with the correct opening is required. Existing toughened or double-glazed glass cannot normally be cut after manufacture.

Download the Product Manual

Download the PetPorte Smart Flap Product Manual
