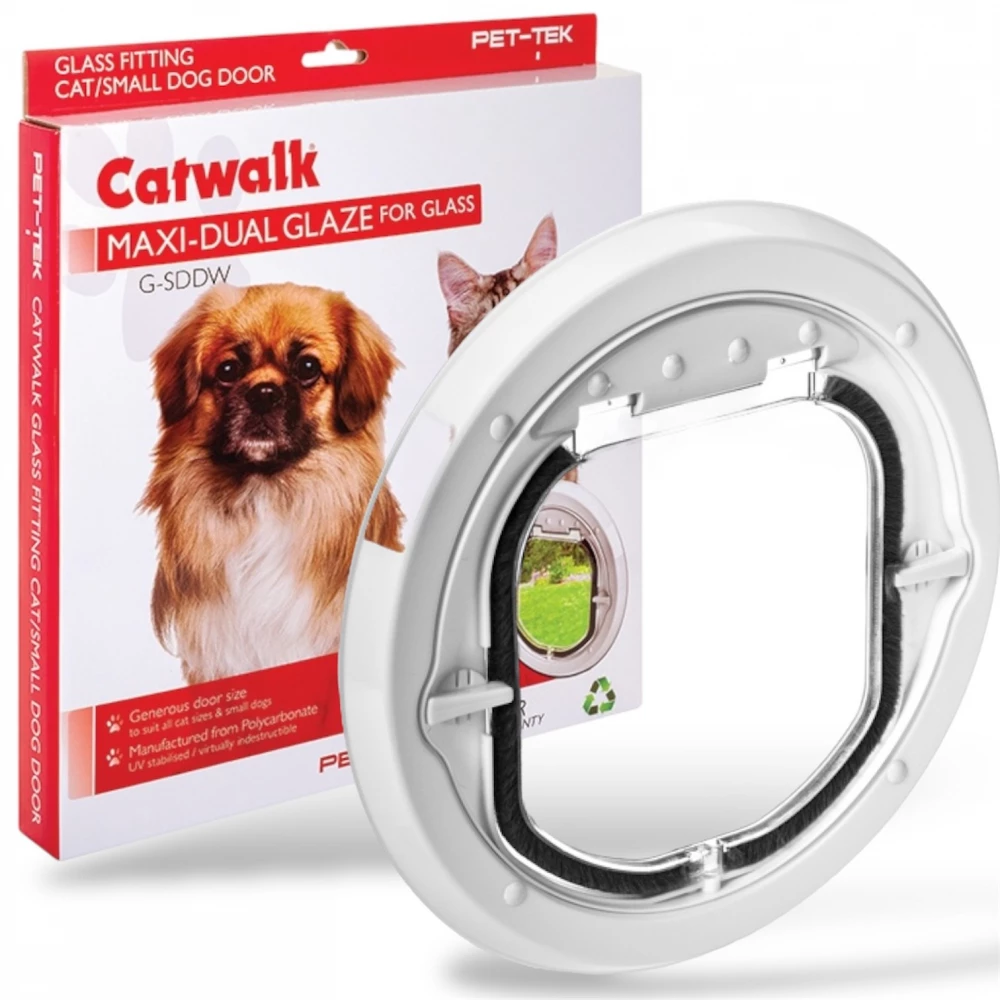

Pet-Tek G-SDDW Maxi Dual Glaze Pet Door – White

The Pet-Tek G-SDDW Maxi Dual Glaze Pet Door in White is a glass-fitting pet door designed for installation into suitable single-glazed and double-glazed glass.

Suitable for large cats and small dogs, the Pet-Tek Maxi combines a generous pet opening with a neat white frame, transparent flap and 4-way locking system.

Important for glass ordering: The Pet-Tek G-SDDW requires a 267mm diameter circular glass cut-out. Confirm the pet door and required hole size with your glazier before the replacement glass is manufactured.

Pet-Tek G-SDDW Glass Cut-Out Size

• Model: G-SDDW
• Glass Cut-Out: 267mm diameter circular hole
• Flap Opening: 195mm x 185mm
• Glass Thickness: 3mm to 28mm
• Colour: White
• Pet Size: Large cats and small dogs
• Recommended Pet Weight: Up to approximately 10kg
• Locking: 4-way

Do not order replacement glass until you have confirmed the required 267mm hole for your G-SDDW.

Designed for Glass Doors & Windows

The Pet-Tek Maxi Dual Glaze G-SDDW has been specifically designed for suitable glazed installations and can be used in applications including:

• Sliding patio doors
• French doors with suitable glazed panels
• Conservatory doors
• Single-glazed panels
• Double-glazed units
• Suitable glass doors and windows

The G-SDDW accommodates glass thicknesses from 3mm to 28mm.

Large Cat Flap & Small Dog Door

With an approximately 195mm x 185mm flap opening, the Pet-Tek Maxi provides more room than a conventional cat flap and is suitable for many large cats and appropriately sized small dogs.

The supplied information recommends the pet door for pets weighing up to approximately 10kg.

Always measure your individual pet before ordering. Weight and breed should only be used as a general guide when selecting a pet door.

4-Way Locking System

The integrated 4-way locking system allows you to control your pet's access throughout the day.

• In & Out – allows free entry and exit
• In Only – allows your pet to enter but not leave
• Out Only – allows your pet to leave but prevents re-entry
• Fully Locked – prevents access in either direction

Magnetic Weather-Resistant Flap

The transparent pet flap incorporates a magnetic closure and weather-resistant seals to help reduce draughts and provide smooth everyday operation.

The clean white frame and concealed fixing design provide a neat appearance when installed into suitable glazing.

Key Features

• Pet-Tek G-SDDW Maxi Dual Glaze Pet Door
• White finish
• Designed specifically for suitable glass installations
• Requires a 267mm diameter circular glass hole
• Suitable for glass from 3mm to 28mm thick
• Suitable for large cats and appropriately sized small dogs
• Approximately 195mm x 185mm flap opening
• Recommended for pets up to approximately 10kg
• 4-way locking system
• Transparent pet flap
• Magnetic closure
• Weather-resistant seals
• UV-stabilised high-impact construction
• Concealed external fixings
• Suitable for selected patio and conservatory door installations

Fitting into Double Glazing

For installation into double-glazed or toughened glass, the required opening needs to be incorporated when the replacement glass is manufactured.

Existing toughened glass cannot normally be cut after manufacture, and an existing sealed double-glazed unit cannot simply have a hole added to it. A new glass unit will normally need to be manufactured with the correct opening.

For the Pet-Tek G-SDDW, specify a 267mm diameter circular glass cut-out and confirm the complete specification with your glazier before manufacture.

What's Included?

• 1 x Pet-Tek G-SDDW Maxi Dual Glaze Pet Door – White
• Transparent pet flap
• Integrated 4-way locking mechanism
• Fixings
• Installation instructions

Frequently Asked Questions

What size glass hole does the Pet-Tek G-SDDW need?

The Pet-Tek G-SDDW requires a 267mm diameter circular hole in the glass. Confirm this measurement with your glazier before the replacement glass unit is manufactured.

Can the Pet-Tek G-SDDW be fitted into double glazing?

Yes. The G-SDDW is designed for suitable single and double-glazed installations and accommodates glass thicknesses from 3mm to 28mm.

Can my existing double glazing be cut?

Normally no. Toughened glass cannot normally be cut after manufacture, and an existing sealed double-glazed unit will generally need to be replaced with a new unit manufactured with the required 267mm circular opening.

What is the flap opening?

The Pet-Tek G-SDDW has an approximately 195mm x 185mm flap opening.

What size pet is the Pet-Tek Maxi suitable for?

It is intended for large cats and appropriately sized small dogs, with a recommended pet weight of up to approximately 10kg. Always measure your individual pet before ordering.

Can the G-SDDW be fitted into a patio door?

Yes, it can be used in suitable glazed patio-door installations. The replacement glass must be manufactured with the correct 267mm diameter hole.

Does the Pet-Tek G-SDDW lock?

Yes. It has a 4-way locking system providing In & Out, In Only, Out Only and Fully Locked settings.

Is this a genuine Pet-Tek product?

Yes. This listing is for the Pet-Tek Maxi Dual Glaze Pet Door – White, model G-SDDW.

Pet-Tek Maxi Dual Glaze G-SDDW

The Pet-Tek G-SDDW Maxi Dual Glaze Pet Door is a practical choice when you need a larger glass-fitting cat flap or small dog door. Its 267mm circular glass cut-out, 3–28mm glass compatibility, 195mm x 185mm pet opening and 4-way locking system make the important fitting information easy to identify before ordering your replacement glass.
