Pet-Tek Maxi Dual Glaze Pet Door – Clear (G-SDDC)
Product Description

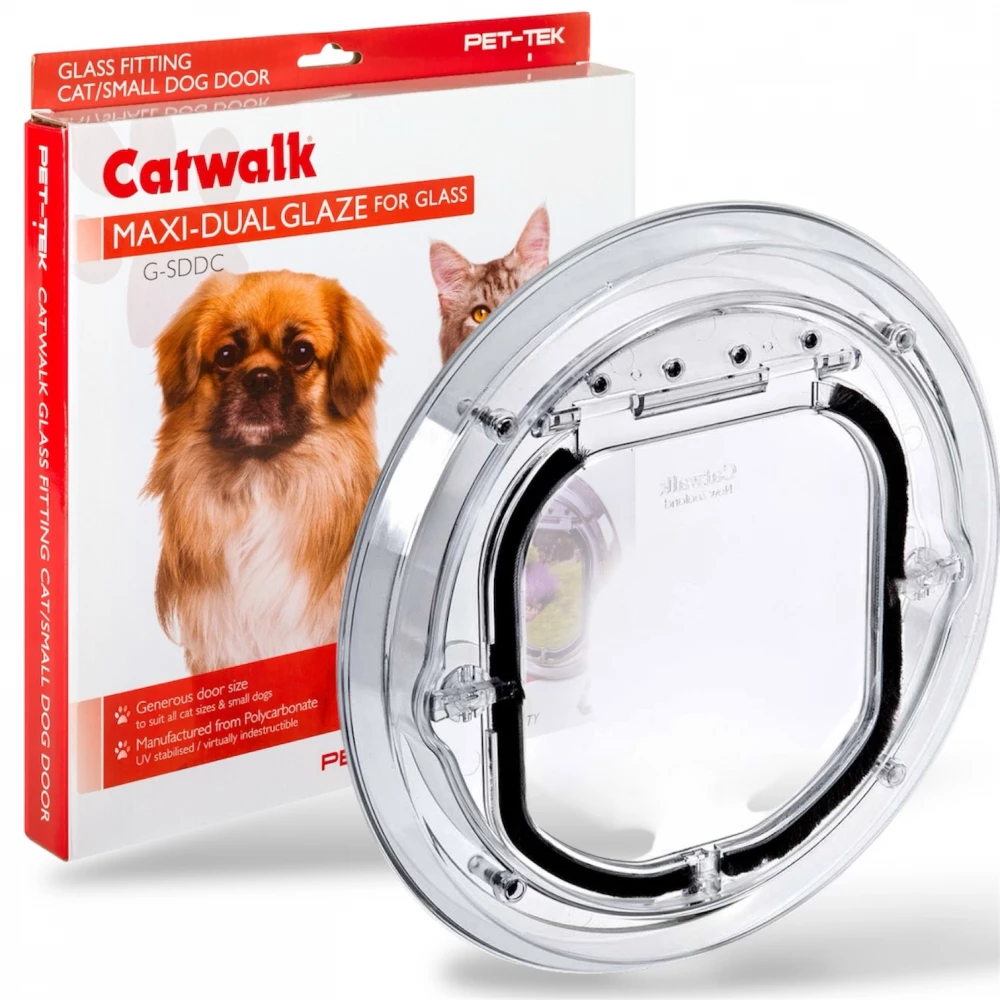

Pet-Tek G-SDDC Maxi Dual Glaze Pet Door – Clear
The Pet-Tek G-SDDC Maxi Dual Glaze Pet Door – Clear is designed specifically for installation into suitable glass doors, windows and glazed panels.
Its transparent frame blends neatly into glazing, making it a good choice for patio doors, conservatory doors and modern glazed entrances where you want the pet door to remain as unobtrusive as possible.
Suitable for large cats and small dogs, the G-SDDC fits glass from 3mm to 28mm thick and requires a 267mm diameter circular glass cut-out.
Important for your glazier: The Pet-Tek G-SDDC requires a 267mm diameter circular hole. Confirm the pet door model and cut-out size before replacement glass is manufactured.
Pet-Tek G-SDDC Dimensions & Glass Cut-Out
| Specification | Details |
|---|---|
| Model | G-SDDC |
| Glass Cut-Out | 267mm diameter circular hole |
| Overall Diameter | 304mm |
| Flap Opening | 195mm x 185mm |
| Glass Thickness | 3mm to 28mm |
| Sliding Door Projection | 17mm inside / 11mm outside |
| Recommended Pet Size | Large cats and small dogs up to approximately 10kg |
| Colour | Clear |
Designed for Glass Doors
The Pet-Tek G-SDDC has been specifically designed for suitable glass installations, including:
- Sliding patio doors
- French doors with suitable glazed panels
- Conservatory doors
- Single-glazed panels
- Double-glazed replacement units
- Modern glazed entrance doors
- Suitable glass windows and panels
The clear frame creates a discreet appearance within the glazing and is particularly useful where a solid white or coloured pet door would be visually intrusive.
267mm Circular Glass Cut-Out
The G-SDDC requires a 267mm diameter circular glass opening.
This measurement is particularly important when ordering new double glazing. Give your glazier the G-SDDC model number and 267mm cut-out requirement before the glass unit is manufactured.
Do not order replacement glazing until the pet door and all fitting requirements have been confirmed.
Suitable for Large Cats & Small Dogs
The approximately 195mm x 185mm flap opening provides more room than many standard cat flaps and is suitable for larger cats and appropriately sized small dogs.
The supplied specification recommends the G-SDDC for pets weighing up to approximately 10kg.
Depending on the individual animal, this may include:
- Maine Coons
- Ragdolls
- British Shorthairs
- Bengals
- Jack Russell Terriers
- Toy Poodles
- Pomeranians
- Miniature Schnauzers
Always measure your individual pet before ordering. Breed and weight should only be used as general guides.
4-Way Locking System
The built-in 4-way locking system lets you control how your cat or dog uses the pet door.
- In & Out – free access in both directions
- In Only – allows entry but prevents normal exit
- Out Only – allows exit but prevents normal re-entry
- Fully Locked – prevents normal access in either direction
Magnetic Weather-Sealed Flap
The G-SDDC features a transparent flap with a magnetic closure and weather-resistant seal, helping the flap return to its normal closed position after your pet passes through while reducing unwanted draughts.
The UV-stabilised construction is designed for regular use in glazed external doors and panels.
Key Features
- Pet-Tek G-SDDC Maxi Dual Glaze Pet Door
- Clear transparent frame
- Designed specifically for suitable glass installations
- 267mm diameter circular glass cut-out
- 304mm overall diameter
- 195mm x 185mm flap opening
- Fits glass from 3mm to 28mm thick
- Suitable for large cats and small dogs
- Recommended for pets up to approximately 10kg
- 4-way locking system
- Magnetic flap closure
- Weather-resistant seal
- UV-stabilised construction
- Concealed external fixings
- Suitable for selected patio and conservatory door installations
Sliding Patio Door Clearance
For suitable sliding-door installations, allow for the pet door projection of approximately:
- Inside: 17mm
- Outside: 11mm
Check that the sliding panels have sufficient clearance before the replacement glass is ordered.
Fitting into Double Glazing
For installation into double-glazed or toughened glass, the required opening normally needs to be incorporated when the replacement glass is manufactured.
Existing toughened glass cannot normally be cut after manufacture, and an existing sealed double-glazed unit cannot simply have a circular opening added afterwards.
A new glass unit should normally be ordered with the correct 267mm diameter circular opening already prepared for the G-SDDC.
What's Included?
- 1 x Pet-Tek G-SDDC Maxi Dual Glaze Pet Door – Clear
- Transparent pet flap
- Integrated 4-way locking mechanism
- Fixings
- Installation instructions
Frequently Asked Questions
What size hole does the Pet-Tek G-SDDC need?
The Pet-Tek G-SDDC requires a 267mm diameter circular glass hole. Confirm this with your glazier before the replacement glass is manufactured.
Can the G-SDDC be fitted into double glazing?
Yes. It is designed for suitable single and double-glazed installations and fits glass from 3mm to 28mm thick.
Can my existing double-glazed panel be cut?
Normally no. Toughened glass cannot normally be cut after manufacture, and a sealed double-glazed unit will generally need to be replaced with a new unit manufactured with the correct circular opening.
What is the flap opening size?
The Pet-Tek G-SDDC has an approximately 195mm x 185mm flap opening.
What size pet can use the G-SDDC?
It is designed for large cats and appropriately sized small dogs weighing up to approximately 10kg. Always measure your individual pet before ordering.
Can it be fitted into a sliding patio door?
Yes, subject to the construction of the particular door and sufficient clearance between sliding panels. Allow approximately 17mm internal and 11mm external projection.
Does the G-SDDC lock?
Yes. It has a 4-way locking system providing In & Out, In Only, Out Only and Fully Locked settings.
Is this the clear version?
Yes. Model G-SDDC is the clear Maxi Dual Glaze pet door, designed to blend more discreetly into glass.
What is the difference between G-SDDC and G-SDDW?
The G-SDDC is the clear version, while the G-SDDW is the white version. Both use the same 267mm circular glass cut-out and are intended for similar large-cat and small-dog applications.
Pet-Tek G-SDDC Clear Glass Pet Door
The Pet-Tek G-SDDC Maxi Dual Glaze Pet Door is a useful choice when you need a glass-fitting pet door for a larger cat or small dog but want the frame to remain visually discreet. Its 267mm circular glass cut-out, 195mm x 185mm opening and 3–28mm glass compatibility provide the key measurements your glazier needs before manufacture.
