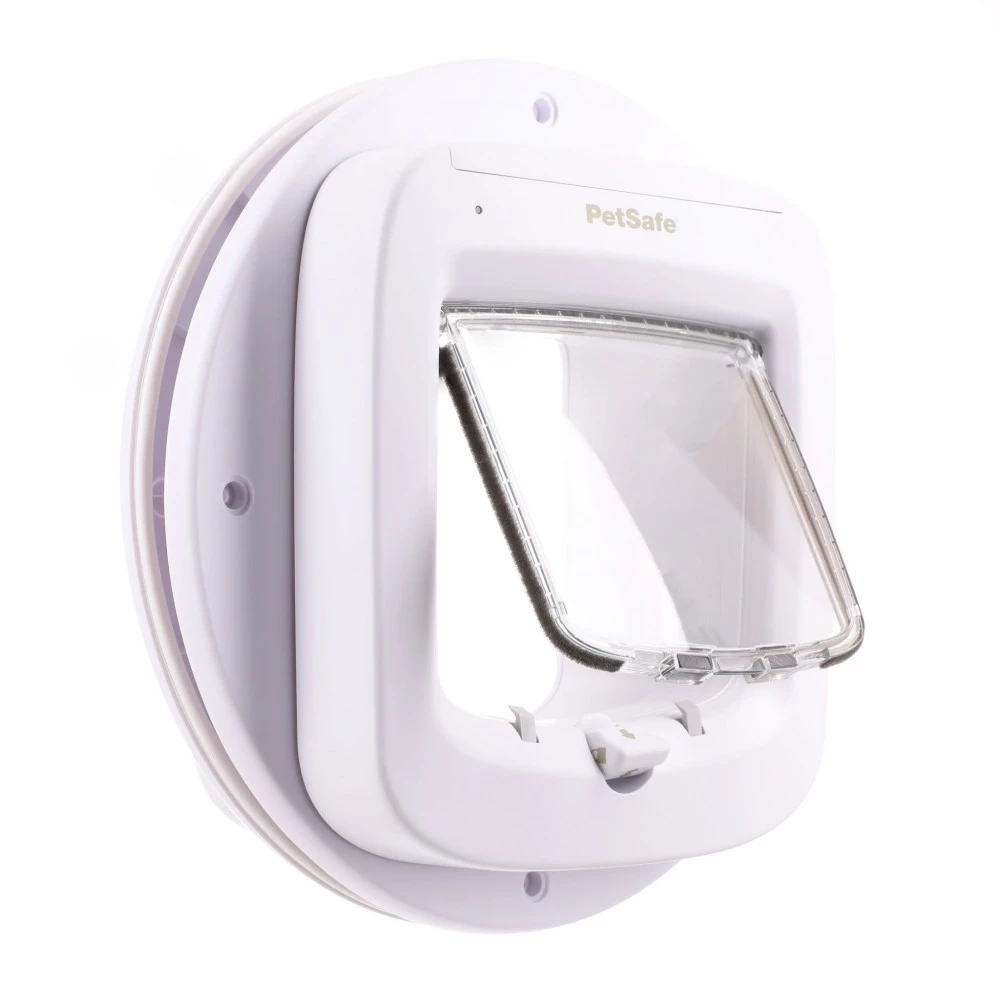

PetSafe Microchip Cat Flap with Glass Adapter for Double Glazing

Microchip Cat Flap Complete with Glass Installation Adapter

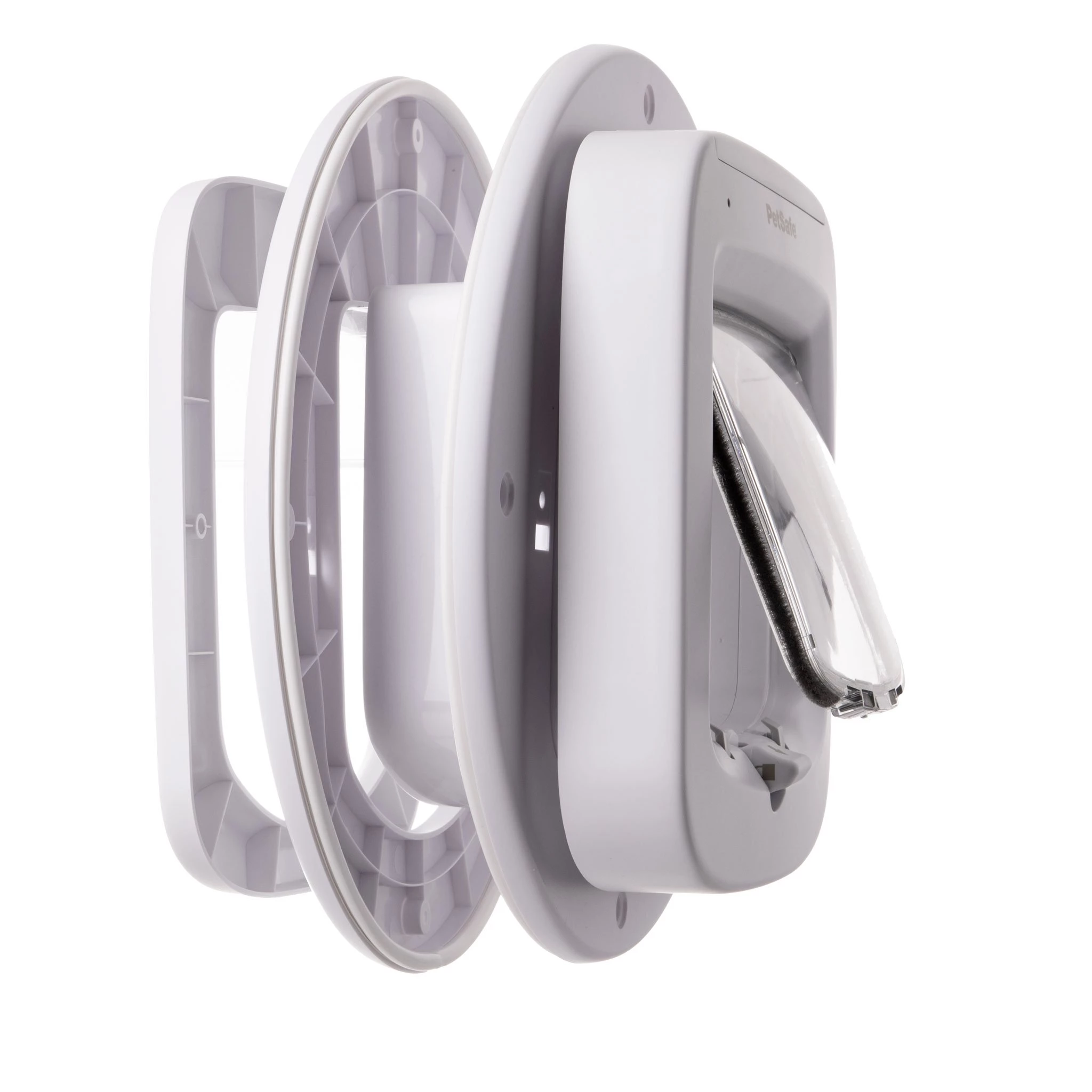

The PetSafe Microchip Cat Flap with Glass Adapter is the ideal solution for installing a secure microchip-operated cat flap into double glazed doors, single glazed glass and glazed panels. Supplied as a complete kit, it includes both the PetSafe Microchip Cat Flap and the genuine PetSafe Glass Adapter, allowing professional installation into circular glass cut-outs.

The included adapter fits glass openings between 275mm and 285mm, creating a neat, weatherproof finish while making the manufacture of replacement double glazed units quicker and more cost-effective.

Key Features

• Complete Glass Installation Kit – Includes both the PetSafe Microchip Cat Flap and genuine Glass Adapter.
• Microchip Controlled Entry – Allows access only to your registered pets while keeping unwanted cats out.
• Stores Up to 40 Pets – Ideal for households with multiple cats.
• Compatible with FDX-B 15-Digit Microchips – No collar required for microchipped pets.
• Optional RFID Key Fob Compatible – Perfect for pets without implanted microchips (sold separately).
• Manual 4-Way Lock – Select Fully Open, In Only, Out Only or Fully Locked.
• Dual Auto-Latch Locking System – Secure operation with improved reliability.
• Weatherproof Design – Draught excluder helps reduce heat loss.
• Low Battery Indicator – Alerts you when batteries need replacing.
• Quick Start Guide & Cutting Template Included

Glass Installation

The supplied adapter is designed for glass cut-outs between 275mm and 285mm in diameter.

For smaller existing openings between 212mm and 270mm, installation may still be possible using glazing tape and specialist adhesives. However, the scanning range may be reduced if the sealed unit contains metal spacer bars or foil-backed warm-edge spacers.

For the best operation, position the hole so the bottom of the flap is approximately level with your cat's stomach.

Specifications

• Overall Cat Flap Size: 220mm × 239mm
• Wood Cut-Out Size: 175mm × 168mm
• Glass Cut-Out: 275mm diameter (using supplied adapter)
• Tunnel Depth: 72mm
• Maximum Pet Shoulder Width: 150mm
• Maximum Pet Weight: 8kg
• Glass Adapter Outside Diameter: 300mm
• Compatible Microchips: FDX-B (15-digit)
• Microchip Memory: Up to 40 pets

Important Information

The typical microchip reading distance is approximately 10–12cm from the outside of the flap. Installation into metal or steel-reinforced doors may reduce the reading range.

Existing toughened glass and double glazed sealed units cannot be cut once manufactured. A new glass unit must be produced with the correct hole already cut by your glazier.

Why Choose This Kit?

• ✔ Complete cat flap and glass adapter package.
• ✔ Secure microchip-controlled access.
• ✔ Compatible with up to 40 registered pets.
• ✔ Ideal for double glazed patio doors and glass doors.
• ✔ Weatherproof and energy efficient.
• ✔ Genuine PetSafe components.

The PetSafe Microchip Cat Flap with Glass Adapter offers a professional solution for installing a secure microchip cat flap into glass while keeping unwanted animals outside and giving your cat the freedom they deserve.

Download Product Manual
