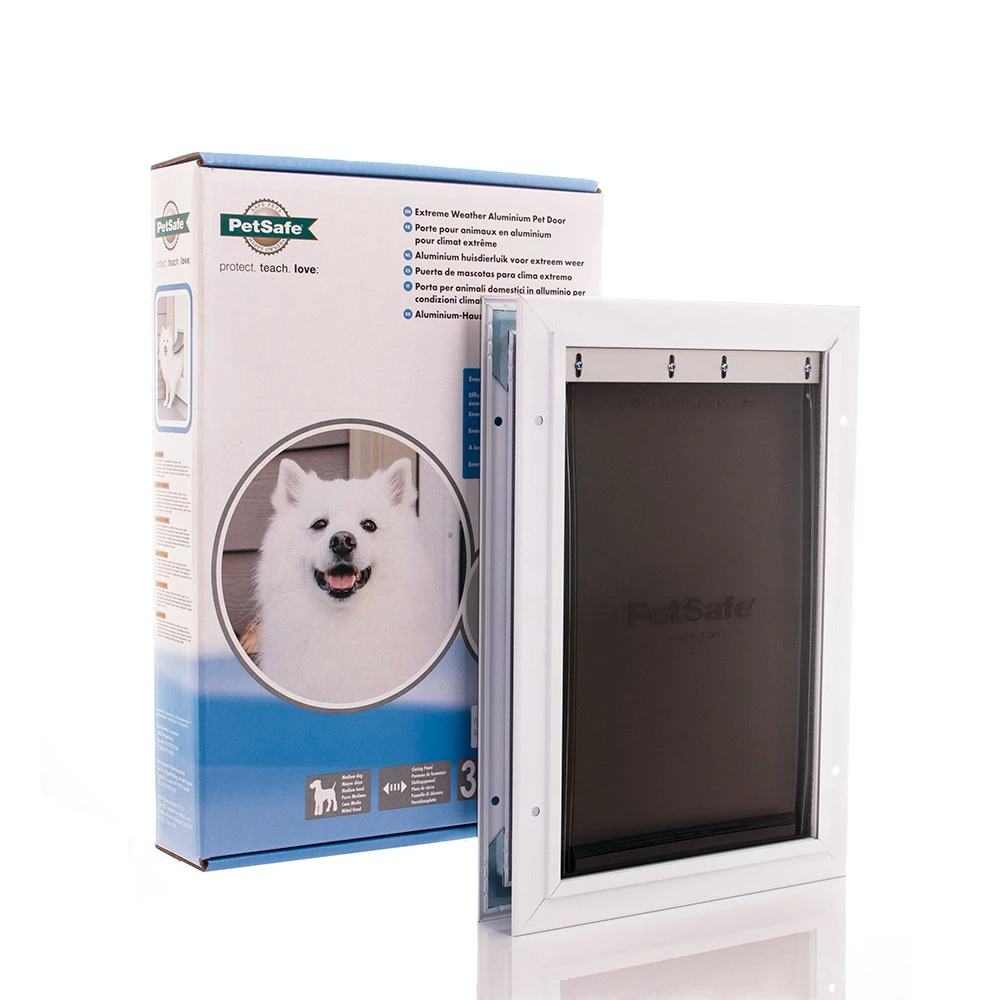

UPVC DOG Door Kit Medium Petsafe Aluminium Extreme Weather Door
Product Description
Dog Flap For UPVC Door Panels Medium Extreme Weather
This product is a door kit which allows you to put the door into a UPVC panel 20mm 24mm or 28mm. The door is supplied with a frame extension that fits behind the standard frame on the inside which ensures the side in the panel misses the door mid-rail when lifted. Suitable with UPVC panels 20mm 24mm or 28mm
Triple flaps help reduce drafts and flowing cold air the insulated panel reduces heat loss. The triple flap design is adjustable so the flaps can be aligned to the correct position after the door has been installed.
The outer frame is manufactured with a robust aluminium frame; the flaps are a flexible rubber design on the inside, and outside the centre, the flap is an insulating material.
The middle inner flap is manufactured from a material designed to help reduce heat loss; although very slim and fitted correctly, it makes a massive difference to the door's energy efficiency.
Internal
The door come with a slide-in panel which has a straightforward lock to keep it in place. The panel can be used to prevent your dog from going out, and it is also needed on windy days to stop the flaps from blowing open. The material is robust, and it will help on cold nights to prevent heat loss.
Features
- Internal control slide-in panel to prevent the use of the door.
- It is made to last aluminium frame.
- Flexible rubber flap with magnets
- Insulated inner flap
- Easy to change flaps.
Installation Tip
Please be careful when fitting the screws not to over-tighten them. always fit the frame extension internally.
Specifications
Frame Outer Size side with no packer 276 mm x 397 mm (tolerance - +5mm) and the inner side with the packer 296.5 mm x 418.90 mm (tolerance - +5mm)
Inner Panel needs clearance of 276 x 800mm
Flap Opening 206 x 311mm (replacement flap PAC11-11038
Cut Out Sizes 230mm x 349mm
Door thickness from 17.5mm to 30mm.
Please note these doors will not keep humans out. You will need to consider security on other internal doors. Caution small children will need watching. They will be able to get through this size door
