Pet Mate - Cat Mate Microchip 360 Cat Flap

5 reviews 2794 sold. Only 20 remain
Brand: CatMate
Product Code: PM360W
Availability: In Stock
Viewed 20055 times

Product Description

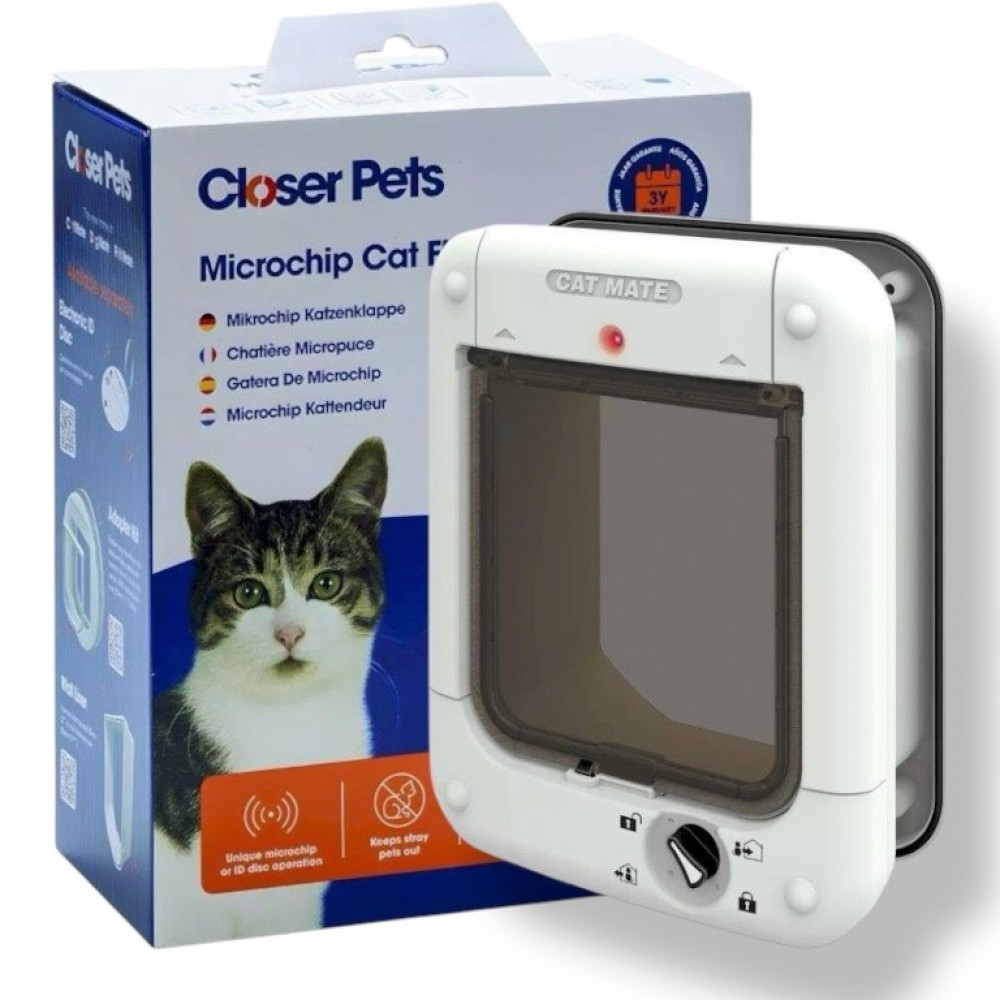

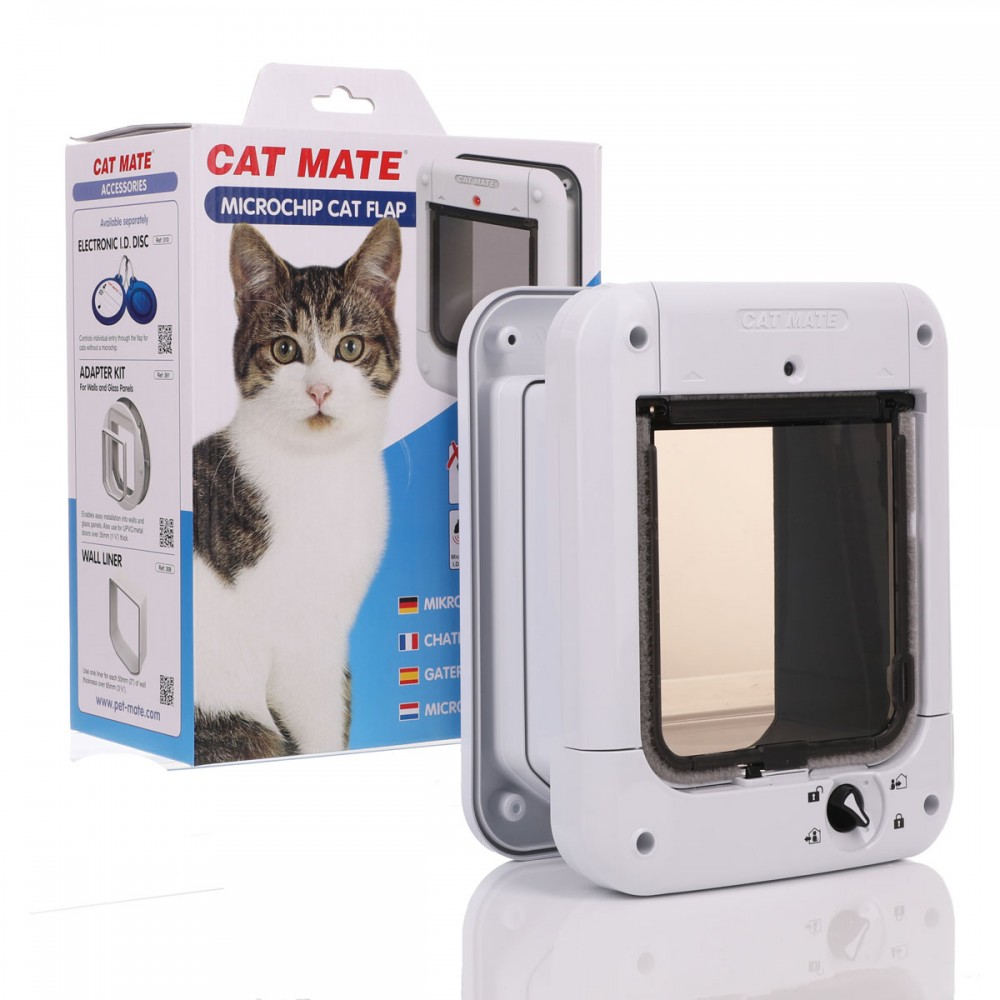

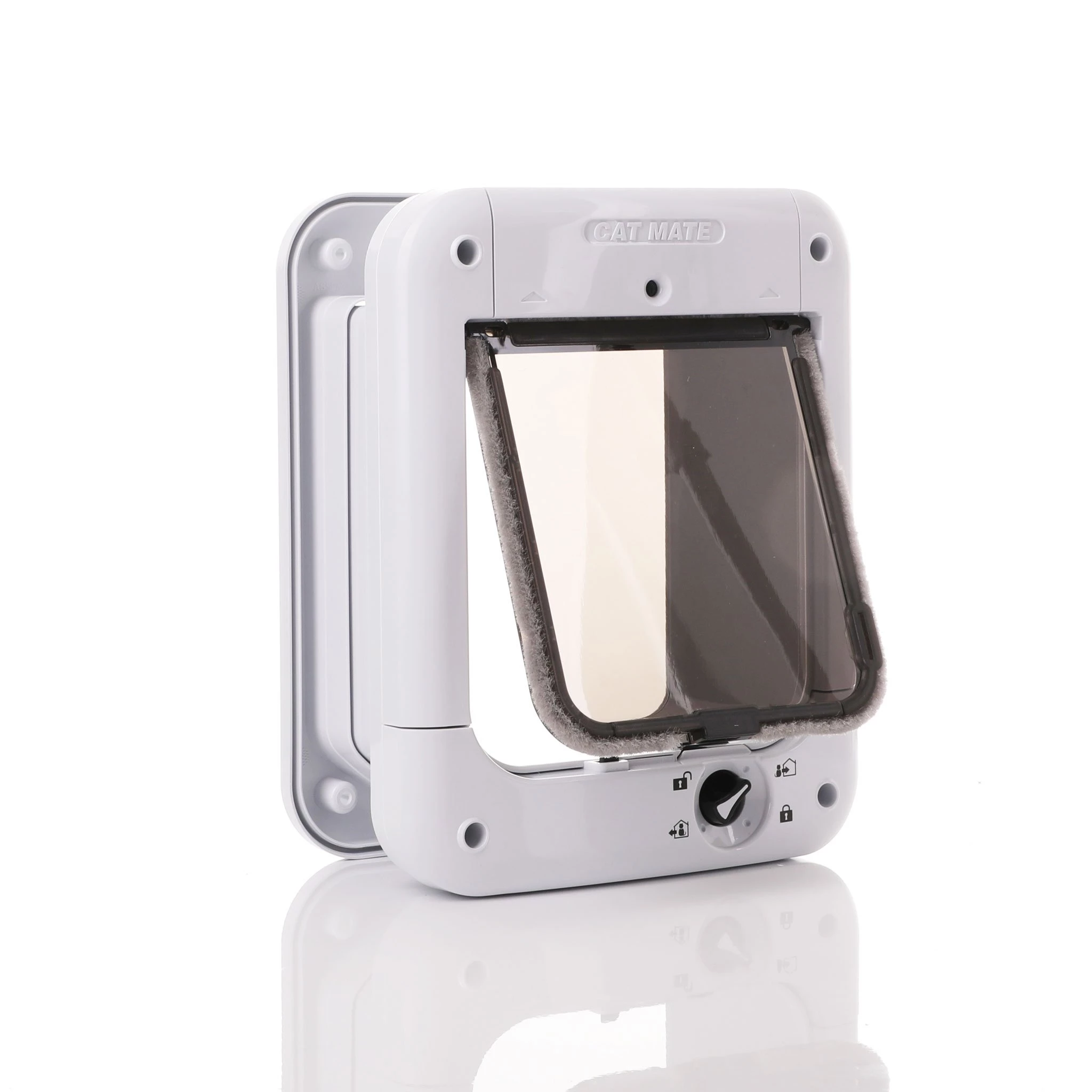

Cat Mate Microchip Cat Door White 360

The easy to use, rotary 4-Way lock gives complete control over your cat's access to and from the house. The streamlined design of the Cat Mate microchip cat door maximises entrance opening space - providing easy, stress-free access for your cat. The large 144mm (W) x 150mm (H) opening is fitted with a transparent flap preferred by most cats and made from super-tough polymer. The brush sealed flap with magnetic closure ensures a draft proof and weatherproof seal. The microchip door is self lining to 85mm thick - ideal for fitting to all doors, including metal.


Width: 197mm (7 3/4")

Height : 246mm (9 11/16")

Out Size Width : 173mm (6 7/8")

Height : 198mm (7 3/4")

Going through walls use the link below to order the correct tunnel.

The door has a simple 4 -way lock to use with the chip operation


This door has been developed to offer the ultimate solution for selective entry control, operated by your cat's unique implanted identification microchip. This eliminates the stress and frustration caused by the unwelcome intrusion of neighbouring cats, providing a safe and secure environment for your cat. The door is very easy to program and up to 30 cats can be registered. For cats without an implanted microchip, a unique Cat Mate I.D. The disc can be attached to your cat's collar (available separately).

Please note - the read range on this unit may be affected by the material the cat flap is fitted into e.g. metal. Also if the door panel is reinforced with metal the range of the chip scanner will be affected, to resolve this you can fit the flap using the Petmate glass/wall adaptor. OR you can buy a replacement door panel, available in 20mm, 24mm & 28mm, from our website. Our replacement panels do not have any metal in them.

The cat flap can also be easily fitted to walls or glass panels with an adapter kit (available separately).

For wall thickness over 85mm, a Cat Mate Elite Wall Liner (PM308W) will be required for each additional 50mm and cat flap adapter kit (PM361) (available separately) and.

The Cat Mate door is battery powered and will give approximately 12 months operation from 4 x AA batteries (not included).

The LED indicator flashes with a short pulse every 30 seconds when the batteries are in need of replacement.

The simple functionality and rugged construction of the 360 provide the ideal solution for making your home a peaceful environment for your cat, safe from the territorial bullying of neighbouring cats and other animals. *

All Cat Mate products are covered by a comprehensive 3-year guarantee.

Simple to use 4 way lock system.

Features Entry operated by your cat's implanted microchip - keeps stray pets out Compatible with 9, 10 and 15 digit microchips

Easy to program, at the push of a single button

Easy to use, rotary 4-Way lock Requires

4 x AA batteries (not included) which will give approximately 12 months of operation 3-year guarantee

range 20cm - 24cm - measured from the outside of the flap.

please note:- the material the cat flap is fitted to, eg metal, may reduce the distance

You will need a glass adapter to install its version into double glazing. Or to go through walls you will need tunnels

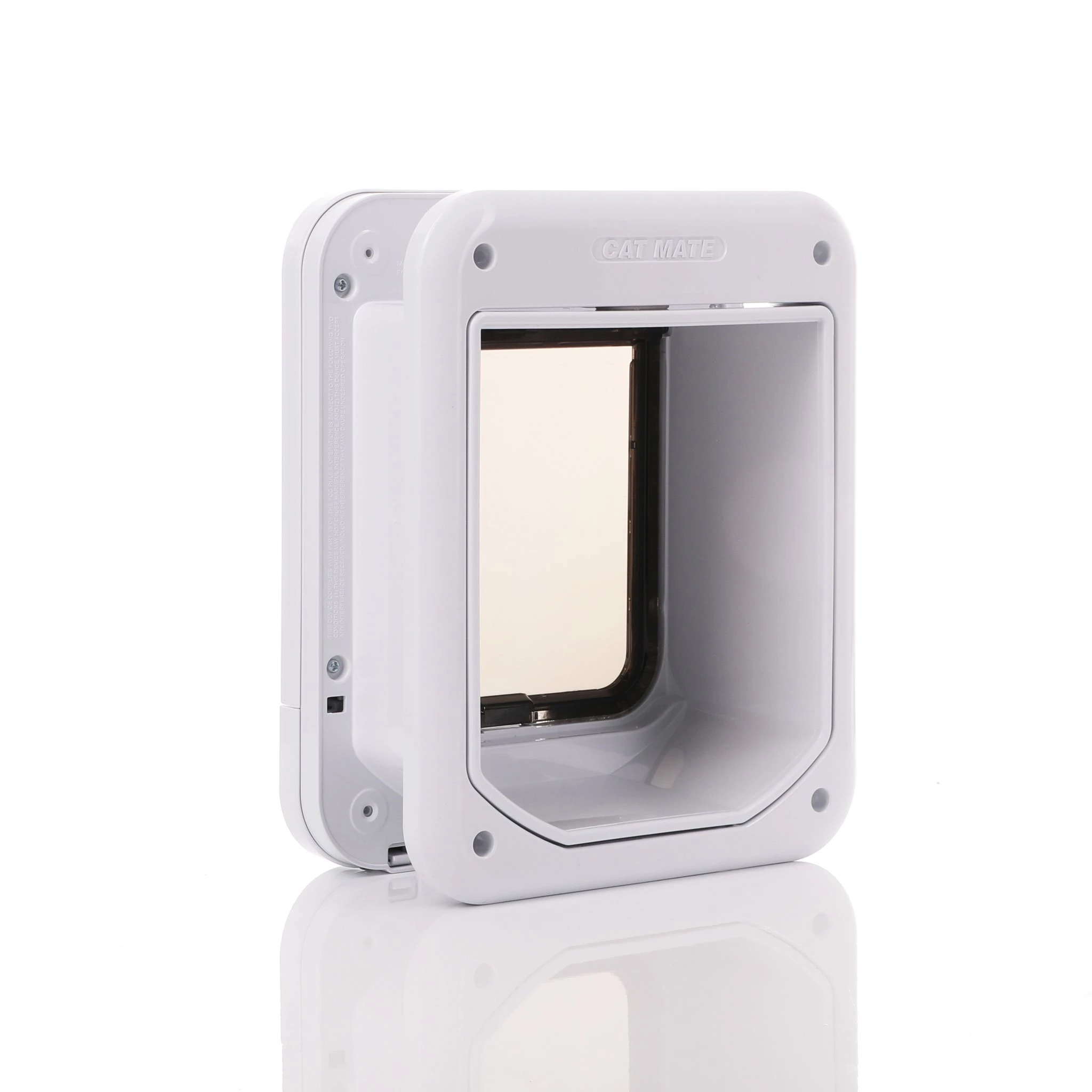

External view showing tunnel from the out side.

Dimensions Overall Size

Width: 197mm (7 3/4")

Height : 246mm (9 11/16")

Out Size Width : 173mm (6 7/8")

Height : 198mm (7 3/4")

Replacement flaps are available for the microchip 360

Download Product Manual
