Product Description

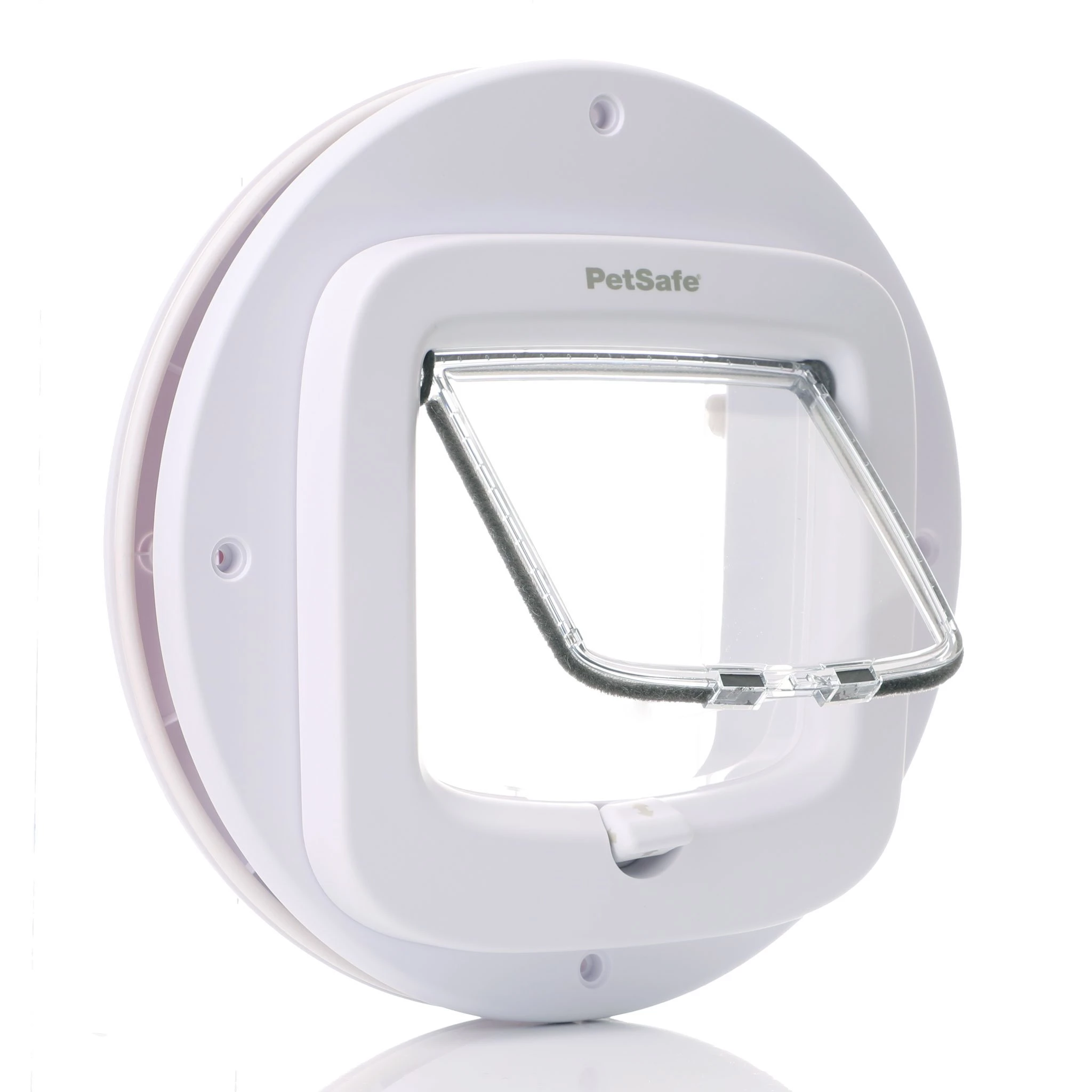

Manual Cat Flap With Glass Adaptor For Double Glazing


Suitable glass fitting cat flap in glass existing openings need to be between 212 mm to 285 mm in diameter or a new hole can be cut to suit. This is the latest door from PetSafe it replaces the old Staywell cat flap for glass door the Staywell 300 deluxe models.

Standard manual cat flap and adapter to go into double glazing.


The latest PetSafe manual cat door and glass adapter allows a standard simple door to be installed in to double glazed units when they are manufactured by the glass company.

Self lining with it,s own tunnel to hide the edges of the glass unit.

The adapter allows the cat door to be installed into a circular hole with a 275mm - 285mm diameter making the production on the glass unit quicker and more cost-effective.

The hole should be where possible cut to the height of the underside of your cat's tummy. to reduce rubbing when using the door.

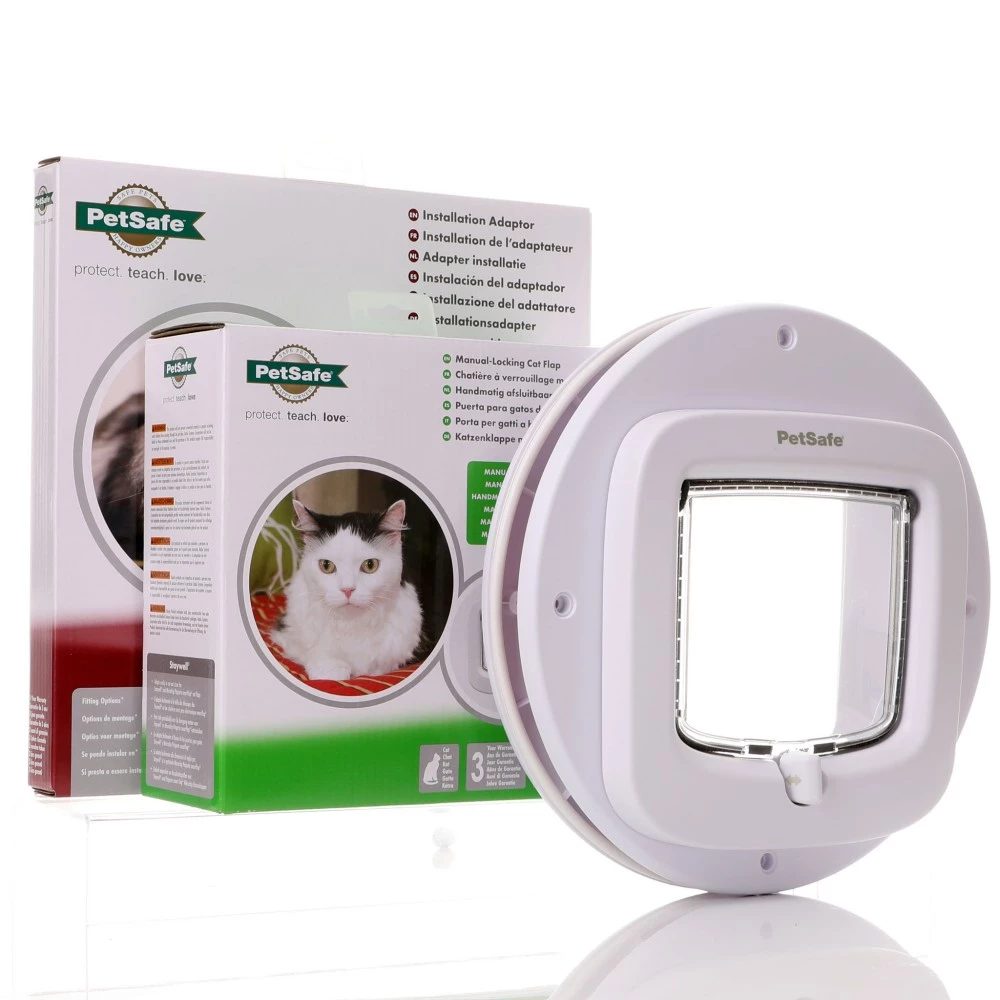

Cat door and adapter

• Simple manual 4-way lock.
• Reinforced, dual auto-latch with 4-way manual lock The latest design in-door locks.
• Draught Excluder
• Quick Start Guide and Cutting Template

Fitting Options:

Supplied with a glass adaptor which fits cut out sizes of 275mm to 285mm with the screws supplied (Can be fitted below 270mm to 212mm but will require glazing tapes and glues.

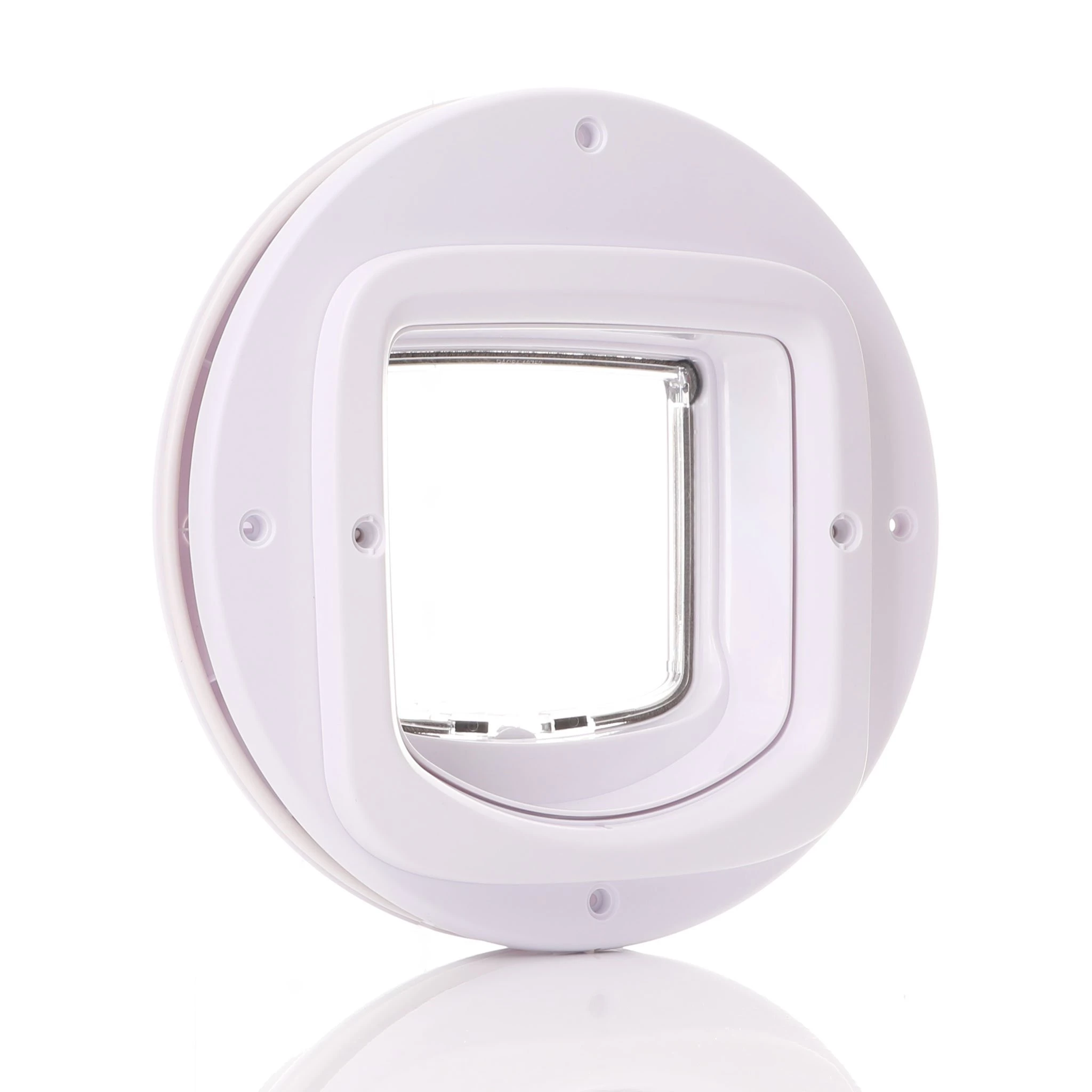

Shows the outside looks of a cat flap in glass.


We have left the fixing holes exposed so you can see them but the door does come with covers to hide them.

The overall diameter of glass adaptor - 30cm
Cat Door Dimensions
Overall Size: 219mm x 219mm
Cutout Size: 175mm x 168mm
Glass Cut Out Size: 275mm diameter* with the adaptor
Tunnel Depth: allows for a maximum double glazed unit of 28mm Max

Pet Shoulder Width: 150mm
Maximum Pet Weight: 8kg

Adaptor has glazing gaskets pre-fitted and both the adapter and cat door have drainage holes.

Adaptor Dimensions Total external size is 300mm

Can you put a cat flap in a glass door?

Yes, you can but it needs to done either by ordering a pre-cut double glazed unit or by employing a cat flap fitter.

*It is not possible to cut holes in toughened glass or double glazed units except at the time of manufacture. Please contact a glazier.

Download The Petsafe Door Manual

Download The PetSafe Glass Adapter Manual
