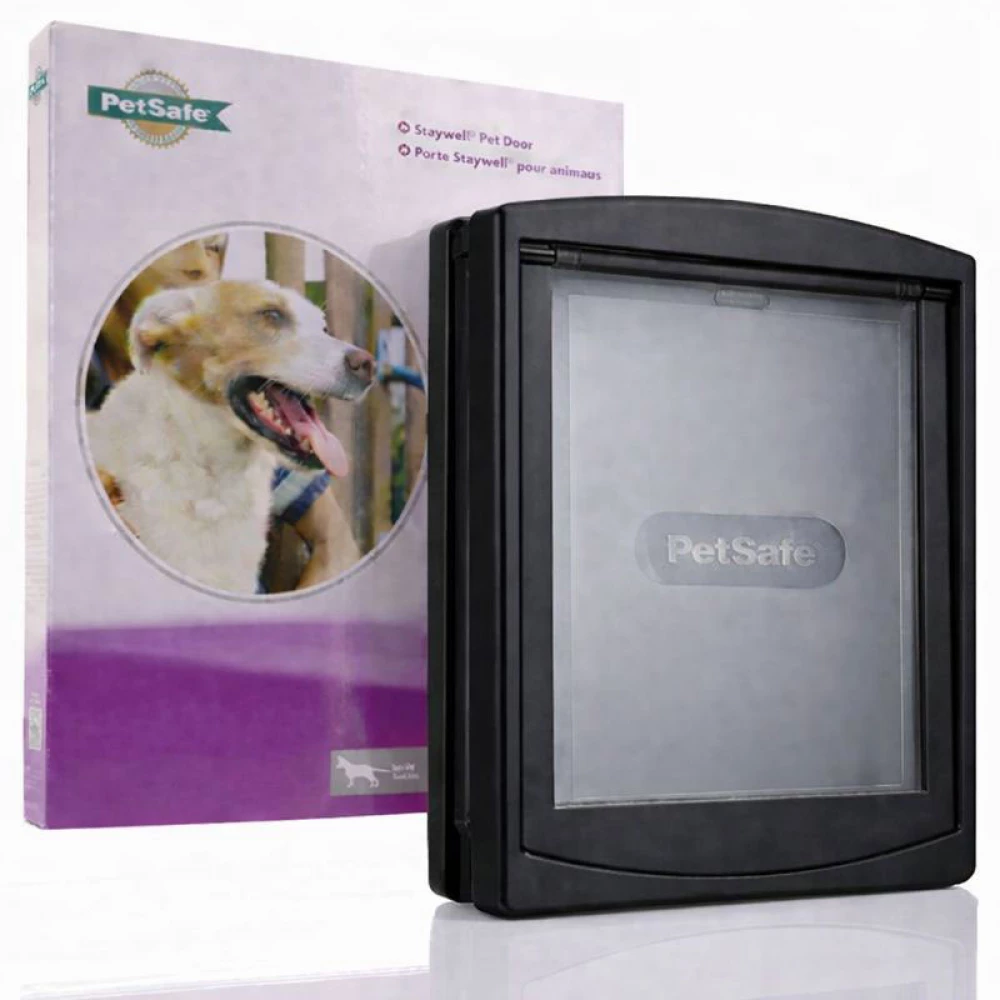

PetSafe Staywell 760 Black Large Dog Flap

The PetSafe Staywell 760 Large Dog Flap is a strong, practical pet door for larger dogs, professionally finished in Black on both the external and internal faces.

This all-black finish gives the dog flap a clean, coordinated appearance on black uPVC, composite and painted doors while retaining the proven Staywell 760 design.

The door features a strong rigid clear flap for regular daily use and is supplied with an internal slide-in closing panel for controlling access when required.

Black Outside, Black Inside

Both sides of this Staywell 760 are professionally finished in Black, giving the pet door a consistent appearance inside and outside the property.

This makes it a useful alternative to the standard white Staywell 760 where the pet door is being fitted into a black door or where a darker finish is preferred throughout.

Colour & Warranty Notice – Please Read Before Ordering

This is a professionally sprayed-to-order product and is therefore not returnable.

The original PetSafe Staywell 760 is professionally prepared and sprayed Black on both sides after manufacture.

Because the colour finish is applied after manufacture, the sprayed finish is not covered by the PetSafe manufacturer's warranty.

During preparation and spraying, the product must be handled. As a result, minor marks or signs of handling may occasionally be visible. These do not affect the performance or operation of the dog flap.

Colour accuracy: Black shades and finishes can vary between manufacturers. Screen settings, lighting conditions and differences between sprayed, foiled and factory-coloured surfaces can also affect how the colour appears.

The supplied finish is a plain sprayed Black and may not exactly match black foiled uPVC, composite doors or other factory-finished products.

Key Features

• PetSafe Staywell 760 Large Dog Door
• Black external frame
• Black internal frame
• Strong rigid clear flap
• Internal slide-in closing panel supplied
• Closing panel allows pet access to be restricted
• Useful for closing the pet door overnight or during poor weather
• Replaceable flap design
• Durable, easy-clean frame
• Tunnel sections included for doors up to approximately 50mm thick
• Suitable for larger dogs

Staywell 760 Large Dog Flap Dimensions

• Overall Size: 456mm x 386mm
• Cut-Out Size: 370mm x 314mm
• Maximum Pet Shoulder Width: 290mm
• Maximum Pet Weight: Approximately 45kg / 100lb
• Model: PetSafe Staywell 760
• Size: Large
• External Colour: Black
• Internal Colour: Black

What's Included?

• PetSafe Staywell 760 Large Pet Door
• Black external frame
• Black internal frame
• Rigid clear flap
• Internal slide-in closing panel
• Tunnel sections for suitable doors and panels

Internal Slide-In Closing Panel

The Staywell 760 is supplied with a strong internal slide-in closing panel. This can be fitted when you want to prevent your dog from using the door.

The panel can also be useful overnight or during particularly cold or windy weather when you want the pet opening completely closed.

Important: Make sure there is sufficient clear space above the dog flap for the panel to slide upwards before cutting your door.

Tunnel for Doors up to 50mm Thick

Tunnel sections are supplied to line installations through doors and panels up to approximately 50mm / 2 inches thick.

The tunnel provides a neat finish to the cut opening and helps cover exposed internal edges.

For walls or deeper installations, an additional tunnel lining will normally need to be constructed using suitable rigid material.

Suitable Applications

• Wooden doors
• Suitable uPVC doors
• Panelled doors
• Suitable composite doors
• Walls with an appropriate additional tunnel liner

Installing in a Composite Door

The Staywell 760 can be fitted into many composite doors, but the construction of the door must be checked carefully before installation.

Raised decorative mouldings may interfere with the dog flap frame, and sufficient clearance must be available above the pet door for the internal slide-in panel.

Any exposed edge created when cutting a composite door should be properly sealed against moisture. A suitable trim, rigid angle or architrave can be used where appropriate to provide a neat, weather-resistant finish.

Packaging Information

The original packaging is opened only so that the product can be professionally prepared and sprayed.

• Box opened for finishing purposes
• Product handled during preparation and spraying
• Product is new and has not been installed or used
• Supplied complete and ready for installation

Any minor handling marks associated with the spraying process are cosmetic and do not affect the operation of the dog flap.

Important Safety & Security Information

This is a large dog door and must not be relied upon as a security barrier.

The opening is large enough that a person may be able to reach through it. Avoid fitting the dog flap close to door handles, locks, keys or other security devices that could be accessed through the opening.

Additional security may be required elsewhere in the property, particularly on internal doors.

Small children must also be considered. The opening may be large enough for a child to pass through, so appropriate supervision and safety measures are important.

Frequently Asked Questions

What does Black outside and Black inside mean?

Both the external and internal frames are professionally finished in Black.

Is this a genuine PetSafe Staywell 760?

Yes. The product is a PetSafe Staywell 760 Large Pet Door that is professionally sprayed Black after manufacture.

Will the Black finish exactly match my door?

Not necessarily. Black finishes vary between manufacturers and between sprayed, foiled and factory-coloured products. The finish is intended to complement black doors and frames, but an exact colour match cannot be guaranteed.

Is the Black finish woodgrained?

No. This is a plain professionally sprayed Black finish. It is not a woodgrain or textured foil.

Is the flap clear?

Yes. The Staywell 760 has a rigid see-through clear flap.

Can the flap be replaced?

Yes. The Staywell 700 Series has a replaceable flap design, allowing a worn or damaged flap to be replaced without changing the complete dog door.

Can this be fitted through a wall?

Yes, but the supplied tunnel only covers installations up to approximately 50mm thick. A suitable additional tunnel lining will normally be required for wall installations.

Product Manual

Download the PetSafe Staywell 700 Series Product Manual
