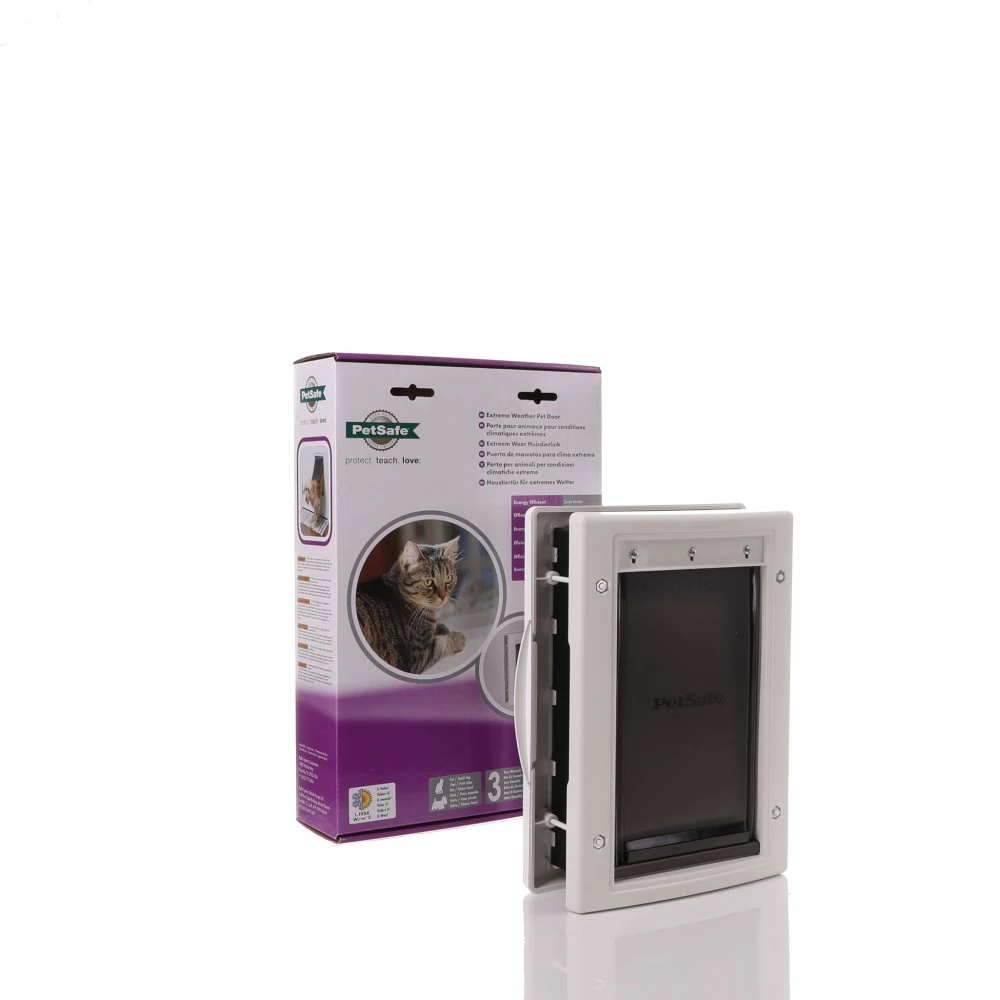

PetSafe Extreme Weather Dog Door – Small

The PetSafe Extreme Weather Dog Door – Small is an energy-efficient pet door designed to help reduce draughts and heat loss while giving smaller dogs and pets convenient access to the outdoors.

Unlike a conventional single-flap dog door, the Extreme Weather Pet Door uses a three-flap system, including an insulated centre flap. This creates additional protection between your home and outside temperatures, making it an excellent choice for exposed locations and homes where energy efficiency is important.

Small Extreme Weather Dog Door Specifications

• Size: Small
• Maximum pet weight: 15lb (approximately 6.8kg)
• Flap opening: 5 1/8" × 8 1/4" (approximately 130mm × 210mm)
• Frame dimensions: 7 1/2" × 11" (approximately 191mm × 279mm)
• Cut-out: 6 3/8" × 10 1/8" (approximately 162mm × 257mm)

Always measure your pet before ordering. Your pet's width and height should be comfortably within the flap opening rather than relying on weight alone.

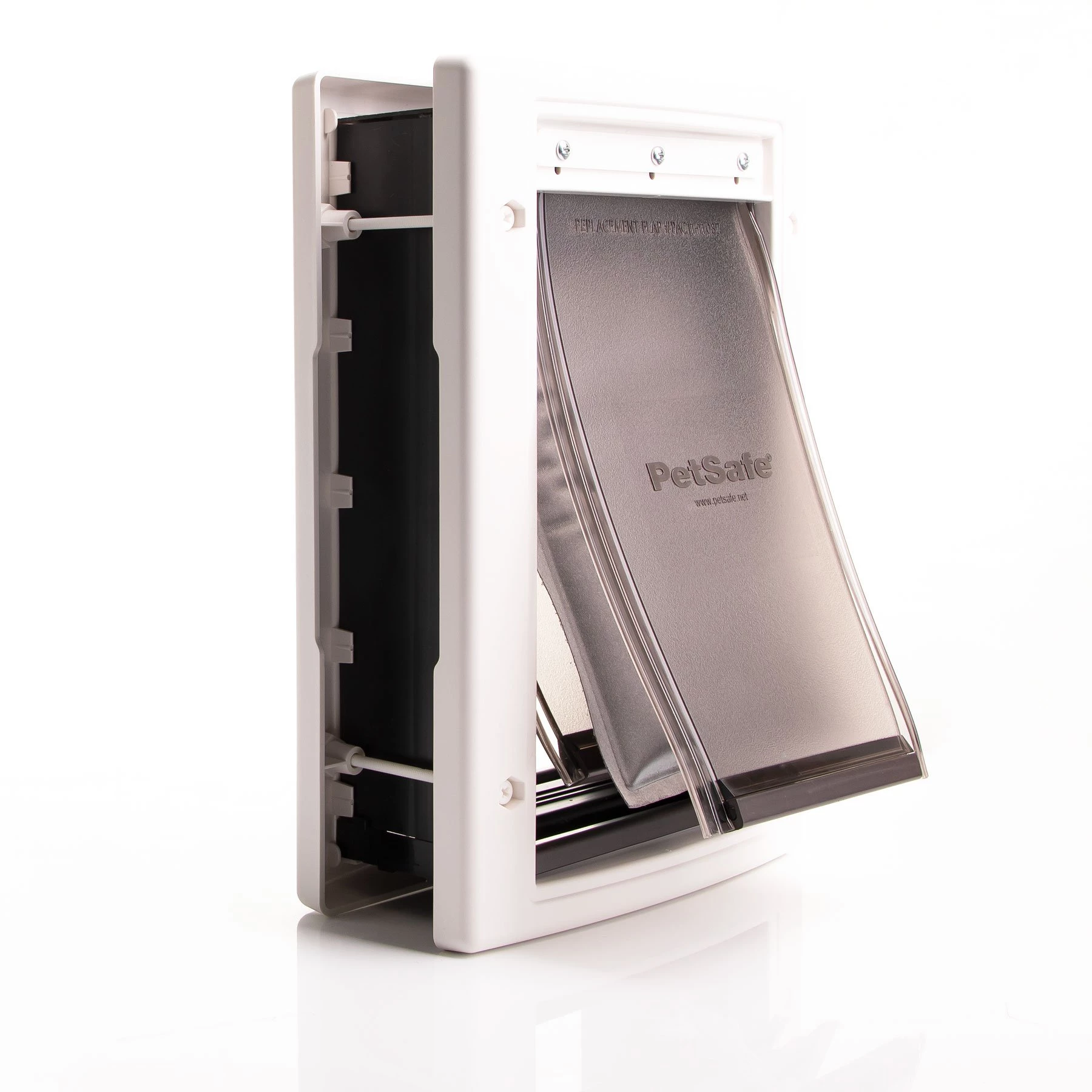

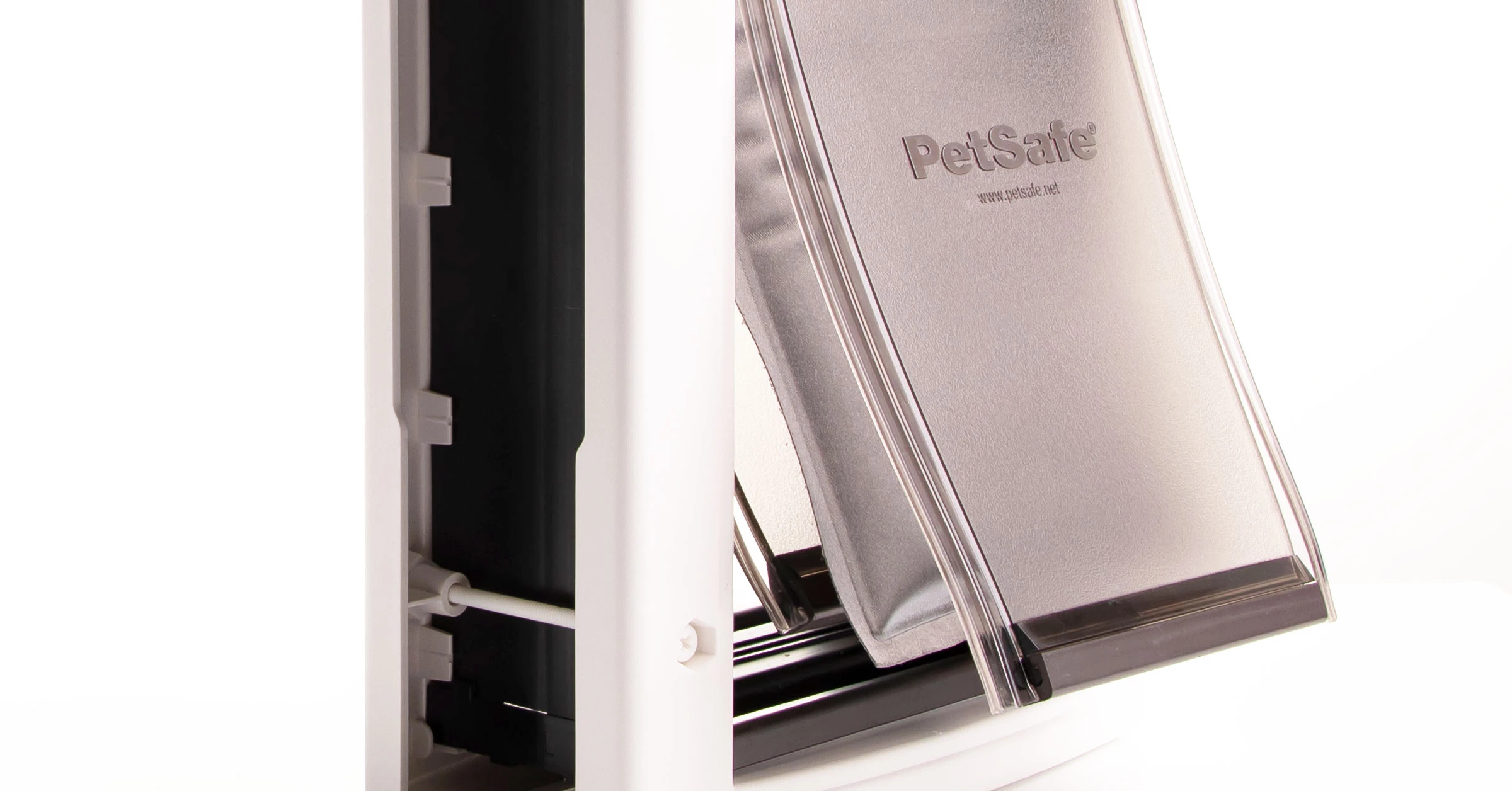

Energy-Efficient Three-Flap Design

The key feature of the PetSafe Extreme Weather Dog Door is its innovative three-flap construction. The additional insulated centre flap creates another barrier against outside temperatures compared with a conventional single-flap pet door.

According to the product specification, the design can be up to 3.5 times more energy efficient than a standard single-flap pet door.

This makes it particularly useful for exterior doors and exposed locations where reducing cold draughts and unwanted heat transfer is important.

Key Features

• Three-flap energy-efficient design
• Insulated centre flap helps reduce heat transfer
• Up to 3.5 times more energy efficient than a conventional single-flap pet door
• Strong magnetic flap closures
• Flexible and adjustable outer flaps
• Replaceable flap design
• Paintable outer frame
• Snap-on internal closing panel included
• Durable plastic frame
• Designed for exterior doors and walls
• 1-year warranty

Paintable Frame

One particularly useful feature of the PetSafe Extreme Weather Dog Door is its paintable outer frame. This allows the visible frame to be painted to complement your existing door.

It is ideal when installing the pet door into a coloured timber, uPVC or other suitable door where a standard white pet door might otherwise stand out.

Closing Panel Included

A snap-on closing panel is supplied and can be fitted when you want to prevent your pet from using the door.

The panel also provides an additional barrier during particularly cold, windy or severe weather conditions.

Suitable For

The PetSafe Extreme Weather Dog Door can be installed into a variety of suitable applications, including:

• Wooden doors
• Panelled doors
• Suitable uPVC doors and panels
• Metal doors
• Storm doors
• Interior walls
• Exterior walls

For doors, the original specification states suitability for thicknesses of approximately 1 5/8" to 2 1/4".

Please note: Wall installations and some alternative applications may require additional materials, framing or specialist installation.

Small Pet Door Dimensions

Pet size: Up to 15lb (approximately 6.8kg)

Flap opening:
5 1/8" wide × 8 1/4" high
Approximately 130mm wide × 210mm high

Overall frame dimensions:
7 1/2" × 11"
Approximately 191mm × 279mm

Required cut-out:
6 3/8" × 10 1/8"
Approximately 162mm × 257mm

Installation Tips

The three-flap construction makes the Extreme Weather model slightly more involved to assemble than a conventional single-flap dog door. Based on our experience assembling this product, the following tips can make installation easier:

• Fit the thin draught excluders into the tunnel before final assembly.
• Check that the lower corner joints correctly locate into the curved section of the bottom tunnel.
• Make sure all tunnel sections sit correctly inside their retaining lugs.
• Allow enough time to correctly adjust the tunnel and flap heights.
• Start by positioning and adjusting the internal centre flap.
• Check that the lower magnets align correctly before tightening everything fully.

Having a second person available during installation can make positioning and adjustment considerably easier.

Why Choose the PetSafe Extreme Weather Dog Door?

Standard pet doors can create an area where warm air escapes and cold air enters the home. The PetSafe Extreme Weather three-flap system has been specifically designed to improve insulation around the pet opening while still allowing your dog easy access.

Combined with its magnetic closures, insulated centre section, paintable frame and closing panel, it is a practical choice for homeowners who want the convenience of a dog door without relying on a basic single-flap design.
